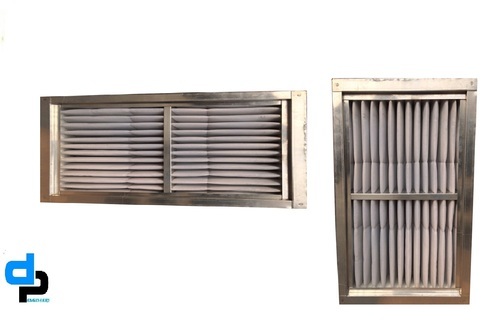

Fine Filters

We are engaged in offering a wide range of filters. Among these we offer Fine Filters. These have been specially designed to meet the requirement of clean air in general ventilation and air conditioning system in Hospitals, Synthetic fiber industries and compressor applications.

Construction:

The heart of the filters is a reinforced washable synthetic non-woven filter media/fire retardant glass fiber media pleated in a format along with the support of wire/HDPE netting. The mediums are carefully selected to offer the best possible performance to suit the specific need. In order to obtain uniformity of dust loading the filter pleats are kept apart by means of aluminium separators.

Media:

The media is a special synthetic non-woven bounded fiber designed to give high efficiency and long service life. It is pressed in the form of a fabric and given special treatment which prevents fungus growth. An alternative media in superior felt is also available, which gives long run trouble free services, and economical in usage.

Features:

• Efficiency : 99.9% down to 5 microns
• Pressure drop : 6.5 mm of wg. At rated flow
• Frame : Galvanized steel sheet/MS/ Aluminium/ stainless steels sheet
• Finish : Painted/ powder coated
• Filter media : Synthetic Non-woven filter media supported with HDPE mesh and Gl/aluminium Expanded mesh
• Media : Pleated
• Sealant : Available
• Type : Box type / Flange type
