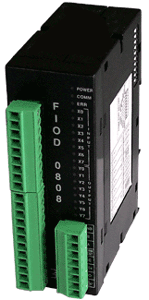

FIOD Field Digital I/O Modules

Get Latest Price

Digital Outputs (Transistor) Voltage drop at ON0.4V or less
Digital Inputs : Logic ‘1’ Voltage12 to 28V
Radiated emissionas per EN61000-6-4
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Renu Electronics Pvt. Ltd.

Baner, Pune, Maharashtra

View Number

Member Since 16 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Rated Input Voltage24 VDC (Max is 28VDC)
Digital Inputs : Logic ‘1’ Voltage12 to 28V
Digital Outputs (Transistor) Voltage drop at ON0.4V or less
Digital Outputs (Relay) Relay Rating230V AC, 2 Amp. (Max.)
Humidity10% to 90% (Non condensing)
Input Impedance5.6 k
Power Supply+24 V DC ± 10%
MountingDIN rail mounting
Logic ‘0’ Voltage0 to 5V
Immunity to Radiated electromagnetic fieldas per IEC61000-4-3
Communication Port:2 Wire RS485
Temperature: Operating Storage0o to 60o C -20o to 80o C
Surgeas per IEC61000-4-5
Isolation1.5KV isolation between communication ports, I/O and power supply section.
Maximum Load current500 mA
Radiated emissionas per EN61000-6-4
Immunity to Fast Transientsas per IEC61000-4-4
Immunity to ESDas per IEC61000-4-2
Immunity to Conducted disturbancesas per IEC61000-4-6
Dimensions (DIN rail)100W X 70H X 35D mm
Rated Input Current4mA

Features
	Low cost compact Digital I/O modules with DIN rail mounting
	2 wire RS 485 port provided on pluggable terminal block
	User definable Address, Baud rate and Parity through DIP Switch
	High Speed Modbus RTU (Slave) communication
	LED indication for each Input and Output , COM Port and Power ON
	No configuration software required
	Relay and Transistor outputs available
	CE marked with optional UL certification

Basic FIOD Operations

Function
The FIOD series products add digital capability to PLC / SCADA. Models are available that offer upto 16 digital inputs and upto 16 digital outputs. The digital inputs and outputs are isolated from the host device. FIOD has one RS 485 (2 Wire) communication port to connect to host device. Communication settings like baud rate, parity and station ID can be set by DIP Switch.

Communication with Host
FIOD module supports Modbus RTU (Slave) Protocol. The communication can be done with Host through 2 wire RS 485 Network.
In case of communication failure with Host, all the outputs are switched OFF.
Modbus Registers Mapping
There are 128 Modbus registers supported in FIOD. Out of which, 64 are input registers (1 to 64) which are mapped to input coils 1 to 1024. FIOD has 64 output registers (65 to 128) which are mapped to output coils 1025 to 2048.
First 16 coils from 1 to 16 are assigned for FIOD inputs (1 to 16).
Coils from 1025 to 1040 are assigned for FIOD outputs (1 to 16).
Modbus Mapping of Registers and Coils are mentioned below :
Sr. Register Range Modbus Modbus
No. /Coil Mapping Tag Length

1.     Input Register      1-64                40001-40064         2 -bytes
2.     Output Register    65-128             40065-40128         2 -bytes
3.     Input Coil            1-1024             00001-01024         1-bit
4.     Output Coil          1025-2048        01025-02048         1-bit
