Five Axis Waterjet Cutting Machine

We are offering 5-axis Waterjet Cutting Machine.

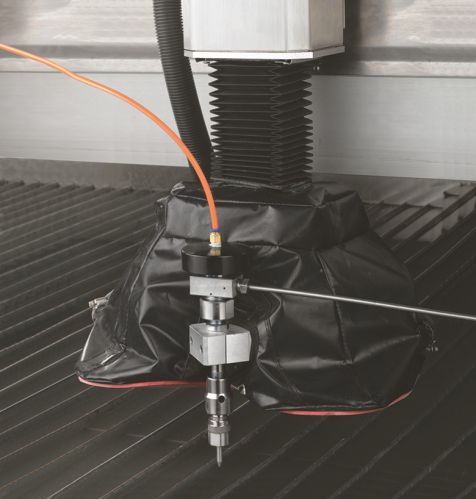

The Smart Angle Waterjet(SAWJ) is a cutting system that tilts the cutting head to produce more accurate parts at higher cutting speeds.its revolutionary design provides a better way to correct two common drawbacks to abrasivejet cutting taper and inside corner kickback.slowing down the cutting speed used to be the best way.tilting the head removes the taper from one side of the cut,leaving a vertical cut on the side of the part.
The SAWJ have four main components:
z-axis
mini-wrist
high-precision cutting head
mini on/pff valve
the wrist assembly is powered by two servo-driven actuators,which allow two more axes of movement(A and B).
Specifications
operating water pressure..............40,000-87,000psi(2800-6000bar)
water connection.......................standard uhp1/4-in.tubing port
shop air...............................0-110psi(4.1-7.6 bar)
air connection.........................6mm air line
a-motor rotation.......................+/-10
b-motor rotation.......................+/-10
the high-precision cutting head has the same functionality as the standard boao 90K cutting head.
The SWAJ can work on both 55K and 90K machine.
