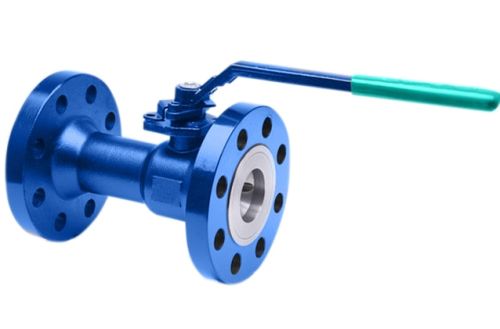

Floating Ball Valve

Product Details

FIRE TESTAPI 6FA / API 607 / BS 6755 PART-2
END CONNECTIONASME B16.5, ASME B16.25, ISO 7005, EN 1092, ASME B16.24, ANSI B16.1
NACE COMPLIANCENACE MR 0175 / 0103, ISO 15156
DESIGNAPI 608, ISO 17292, API 6D
FACE TO FACEAPI 6D, ASME B16.10, MFG. STD
PT RATING0103, ISO 15156 PT RATING ASME B16.34
TESTINGAPI 6D, API 598 / EN 12266 / BS 6755 PART-1

SPECIFICATIONS
VALVE SIZES	1/4" TO 24"
CLASS RATINGS	CLASS 125 TO 2500, PN CLASSES ALSO AVAILABLE
END CONNECTIONS	FLANGED FF, RF / RTJ, BWE, SCRD-NPTF & BSPF, SW
DESIGN TYPES	2 PIECE DESIGN, 3 PIECE DESIGN, SINGLE PIECE DESIGN, TOP ENTRY
TYPE OF PORT	FULL PORT, REDUCED PORT
OPERATION	LEVER / WRENCH, GEARBOX, PNEUMATIC & HYDRAULIC, ELECTRICAL ACTUATORS
ACTUATOR ACCESSORIES	POSITIONER, LIMIT SWITCH, AIR FILTER REGULATOR, IP CONVERTER,SOLENOID VALVE
SPECIAL REQUIREMENTS	METAL TO METAL SEAT, CLADDING , FUGITIVE EMISSION, LIVE LOADING ARRANGEMENT, CRYOGENIC SERVICE, BODY INTERNAL LINING, FBE COATING, CAVITY RELIEF, POP EXTENSION, BYPASS ARRANGEMENT, LOCKING ARRANGEMENT.
