Flow control valve

Product group : Automatic Regulating Valves (ARV)،
Fields of application : Water treatment، Distribution network، Industrial applications، Power house، Water transmission، Irrigation، Dams and hydropower، Wastewater،
Medium : Warm water، Raw water، Drinking water،
Body : Steel، Ductile Cast Iron، .Carbon steel, low alloy steel, etc،
Disc : Ductile Cast Iron، .Carbon steel, low alloy steel, etc، Steel،
Sealing : NBR، EPDM-NBR، EPDM،
Temperature °C : Up to 70
Size (mm) : 1000 - 50
Pressure (bar) : 40 - 10
Price :
Description :Face to face: DIN EN 588-1 series 1(DIN 3202-F1)
Flanges: DIN EN1092-2(DIN 2501)
Product features:

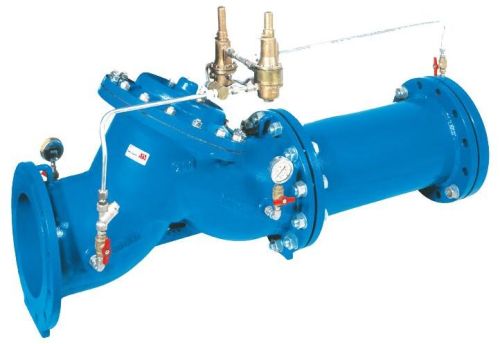

MIRAB control valves are used as regulating and control valves. The body is designed in either horizontal or diagonal shape, with the internal configuration suitable for fluid flow. The valves are controlled automatically by a pilot valve and water flow. Automatic control valves do not require an external power source, meaning that the fluid pressure is enough for opening and closing the valve. The body interior and exterior is coated with epoxy powder.
The Automatic valve maintains the reduced downstream pressure at a constant value irrespective of the changes in upstream pressure and flow rate, also controls the outlet flow rate irrespective of pressure variation.
