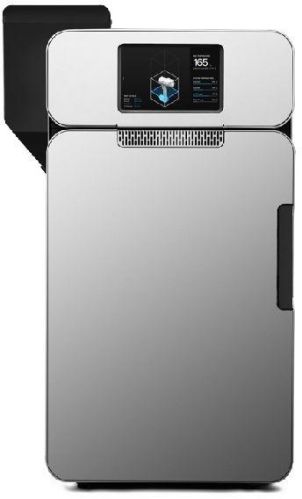

Formlabs Fuse 1 SLS 3D Printer

Sternly packed and delivered safely to the customers' provided address and that too in the committed time span. Our well-structured warehouse is properly managed and maintained by our adroit professionals. Moreover, we keep on updating the unit for better safety.

Specifications

• Print Engine - Selective Laser Sintering
• Print Volume - 165 x 165 x 320 mm
• Build Speed -  10 mm / hour
• Thickness - 100 µm
• Material Refresh Rate - Up to 50%
• Startup Time - 60 minutes
• Connection - Ethernet or Wi - Fi
• Dimensions - 677 x 668 x 1059 mm
• Mass - 88 kg
• Galvanometer - Formlabs Custom
• Scan Speed - 2,000 mm / sec
• Laser Type - Fiber rated to > 10,000 hrs
• Laser Wavelength - 1064nm
• laser Power - 10W
• Print Preparation - PreForm Desktop Software
• Published Value - Property
• Minimum value Full Strength / Depth - Feature

Ultimate Tensile Strength (XY)

• 52 MPa
• 50 MPa

Beam Diameter (FWHM)

• 200 µm
• Software

Energy Needs

• 2 kW, 120 or 240 VAC
• Optical System

File Type

• .STL or .OBJ
• Nylon 12 : Material Properties

Tensile Modulus (XY)

• 1800 MPa
• 1850 MPa

Tensile modulus (Z)

• 1900 MPa
• 1800 MPa

Elongation at Break (XY)

• 14%
• 12%

Elongation at Break (Z)

• 7%
• 6%

Wall Thickness

• 0.75 mm
• 2.00 mm

Pin Diameter

• 1.00 mm
• 2.00 mm

Hole Diameter

• 0.60 mm
• 1.00 mm

Slotwidth

• 0.75 mm
• 3.00 mm

Moving Part Clearance

• 0.25 mm
• 1.00 mm
