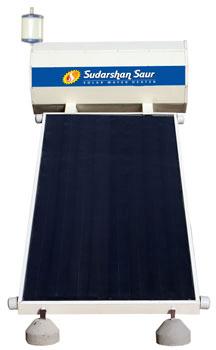

FPC Hard Water Heating System

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

FPC Hard Water Heating System is widely used for heating hard water. We are a Maharashtra-based company, engaged in manufacturing and supplying FPC Hard Water Heating System from Maharashtra, India.....

View More Details

Send Enquiry

Product Details

FPC Hard Water Heating System is widely used for heating hard water. We are a Maharashtra-based company, engaged in manufacturing and supplying FPC Hard Water Heating System from Maharashtra, India. Our FPC Hard Water Heating System is manufactured in accordance with ISI standards and is available with a warranty period of 5 years.
Highlights :

Jacketed type Tank-in-Tank heat exchanger for quick and more heat transfer.
A special non Stick lined steel tank prevents scale deposition and corrosion.
Double access door for easy cleaning of Tank.
Dish end Capsule shape tank for sustaining water pressure & to avoid stress corrosion.
Special sacrificial Anode as corrosion Protector to avoid corrosion.
Drain pipe for periodically cleaning of tank.
Water separator to avoid hot & cold water mixing.
UV stabilized pure polyester pre-coated G.I. outer cover.
Tightly bound Rock-wool insulation using chicken mesh and wrapped by HDPE cloth for polygonal shape outer cover.
Collector is connected to tank by copper connection with brass flanges.
Suitable for Hard Water containing chloride hardness less than 600 ppm.

Flat Plate Collector Box

System Capacity (LPD- Liters Per Day)	100LPD	200LPD	375 LPD	500 LPD	1000 LPD	1500 LPD	2000 LPD	2500 LPD
No. collectors	1	2	3	4	8	12	16	20
Quality Standard	As per BIS standard (ISI)
Collector Box (Casing) Material	Extruded Aluminum frame with specially Aluminum Brazing
Test pressure	Hydro-pneumatic testing at 5 Kg/cm2
Insulation material	50mm - Rock-wool - Thermal Resistance 0.9 Mrt Deg. C/w
Front glazing glass	4mm Toughened Glass, Low Iron - High Impact Resistant, Transmissivity > 92 %
Material of gasket and grommet	Pure EPDM / NEOPRENE rubber Suitable for high temperature
Absorber Fin	Pure Electrolytic Copper Sheet with special omega shape grove and Embossing
Absorber Coating	NATIONAL AEROSPACE LAB (NALSUN) Black Chrome Coating
No. of absorber sheets per collector	8
Material of riser tube	Pure Electrolytic Copper
Absorber Area	2 Sq. Mtr.

Specifications

System Capacity (LPD- Liters Per Day)	100LPD	200LPD	375 LPD	500 LPD	1000 LPD	1500 LPD	2000 LPD	2500 LPD
Material	Specially NON STICK lined steel
Access Door and Drain Pipe	Yes
Insulation material	100 mm Rockwool - Thermal Resistance 0.9 Mrt Deg. C/w
Type of tank	Horizontal ( Specially designed tank in tank model for hard water )
Tank Cover	Detachable Polygonal GI Cover, Coated with UV resistant Pure polyester powder coating
Heat Exchanger Model	Provides maximum heat transfer area - Specially Designed model for Hard Water
Water Separator	Specially designed for avoiding abrupt mixing of Hot and Cold Water
Sacrificial Anode	Highly efficient magnesium corrosion protector
Test pressure	Hydro-pnumatic testing at 5 Kg/cm2
Stand Assembly	Heavy duty M.S. angle duly coated with red oxide and enamel paint.
Line Size	1/2	1/2	3/4"	3/4"	1"	1"	1"	1"
Using Points	1	1	2	2	3	4	5	5
