FPGA Development Board

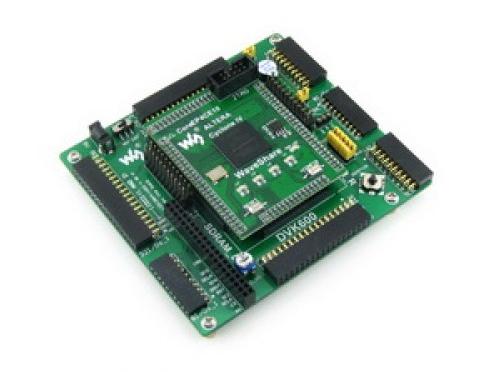

OpenEP4CE10-C is an FPGA development board that consists of the mother board DVK600 and the FPGA core board CoreEP4CE10.

OpenEP4CE10-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with ALTERA Cyclone IV series FPGA devices. OpenEP4CE10-C enables you to start your design with the Nios II processor easily and quickly.

1. FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
2. 8I/Os_1 interface, for connecting accessory boards/modules
3. 8I/Os_2 interface, for connecting accessory boards/modules
4. 16I/Os_1 interface, for connecting accessory boards/modules
5. 16I/Os_2 interface, for connecting accessory boards/modules
6. 32I/Os_1 interface, for connecting accessory boards/modules
7. 32I/Os_2 interface, for connecting accessory boards/modules
8. 32I/Os_3 interface, for connecting accessory boards/modules
