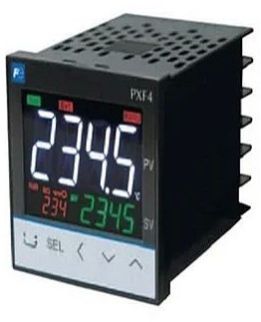

Fuji PXF4 PID On-Off Temperature Controller

₹ 4,000 / piece

MOQ10 piece
Display Type3 Digit/7 Segment
Brand NameFuji
Control TypePID/On-Off
Country of Origin100-240 VAC
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 16 Years
Nature of Business Manufacturer
GST No. 24AADFE1261G1ZY

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of Origin100-240 VAC
Number Of FlowerTemperature Controller
Display Type3 Digit/7 Segment
Brand NameFuji
Control TypePID/On-Off
Input TypeVoltage, Current, RTD, Thermocouple
Control Output TypeRelay/SSR, Analog
Accuracy+/-0.2% FS
Model No.PXF4
Size48 X 48 Mm
Frequency50/60 Hz

Features

Precise control : Achieved a processing speed of 50 ms which is 10 times faster than conventional models. Reading accuracy is also improved from ±0.5% to ±0.2%*. Comparison under 0–850°C range, with RTD. See the Data Sheet for details.
Easy-to-see display : MVA LCD* which offers high contrast and wide viewing angle Process value is displayed in white, Minimal translucent type vertical alignment liquid crystal display
Practical options : Simple watt-hour metering function: allows you to monitor energy consumption
Operating days alarm: tells you the appropriate time for maintenance work
Most compact class in industry : 36% smaller (than conventional models) and 58-mm depth shallow body helps downsize your facility
Universal input : You can use any input among RTD, thermocouples, voltage, current, and mV. The set-up for input change is very easy, only requires parameter change. This allows reduction of maintenance parts.

Specification

Input type	Universal input: thermocouple, RTD, voltage, current, mV
Sampling rate	50 ms
Accuracy	Thermocouple input: either ±1°C ±1 digit or ±0.3% of indicated value ±1 digit, whichever is larger RTD input: ±0.2% of indication value ±1 digit or ±0.8°C ± 1 digit, whichever is larger Voltage and current input: ±0.3% FS ± 1digit
Control cycle	0.1 s to 99 s
Output type	Relay contact output, SSR/SSC drive output, current output, voltage output, motor-operated valve control output
Control	ON/OFF, PID, PID2, fuzzy, 2-degrees-of-freedom PID, auto tuning, self tuning
Communication	Communication port x 1 (for optional USB cable) RS-485 port x 1 (Modbus RTU protocol)
Other functions	Ramp soak (simple program control): up to 64 steps SV/PID selection: up to 8 groups Soft start User-defined keys Auto/manual switching Simple watt-hour monitoring Operating days alarm Heating/cooling control (option) Alarm (option) Multidrop control via RS-485 network, parameter copy, programless communication
Contact output (option)	up to 5 (PXF4: up to 3)
Contact input (option)	up to 3 (PXF4: up to 1)
Transfer output (option)	Output signal: voltage or current
CT input (option)	for heater break alarm or watt-hour metering. Current transformer (for 1–100 A) is optional.
Remote SV input (option)	Input signal: voltage or current
Display	M. V. A. LCD, 4-color, white PV display
Dimensions (W x H x D)	PXF4: 48 × 48 × 65.7 mm PXF5: 48 × 96 × 65.7 mm PXF9: 96 × 96 × 65.7 mm
Power supply voltage	100–240 V AC, 50/60 Hz, 24 V AC/DC
Enclosure	Front waterproof (when watertight packing is used), IP 66 equivalent
