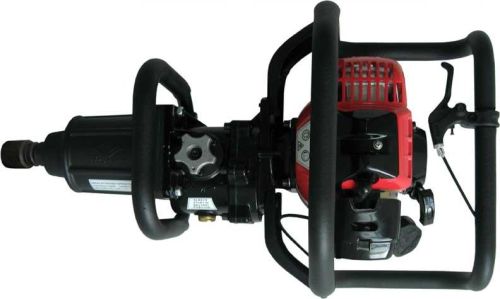

Contact SupplierWe are offering engine impact wrench.
Suitable for the working place without power, compressor,motor, such as petroleum industry, hydroelectric construction, railway hinge, bridge construction, construction site, military repair, vessel repair.
model no.:GW-1700
specifications:
engine:
type: two stroke, forced, air cooled, single cylinder
displacement: 42cc
fuel tank capacity: 0.95liter
fuel mixture ratio: 25:1(gasoline:2 cycle oil)
revolution (idling) : 2700rpm±250
revolution (loaded, impact): 7120rpm
revolution (non-loaded, max) : 9880rpm
maximum output: 2ps/7500rpm
compression rate: 7.1:1
fuel consumption rate :450g/ps.h
ignition: spark plug type: electronic (torch r7)
carburetor : type: diaphragm
impact:
square drive: 1”
fastening torque range : 1700nm (1255ft-lbs)
free speed: 1200rpm
noise :
idle: 74.6 dba (lpa)
loaded : 104dba(lpa)
bolt capacity: 32mm
weight (without fuel) :18kgs
overall dimensions: 650mm (l) *325mm (h)*370mm(w)
accessories: hex, spark wrench, spanner
