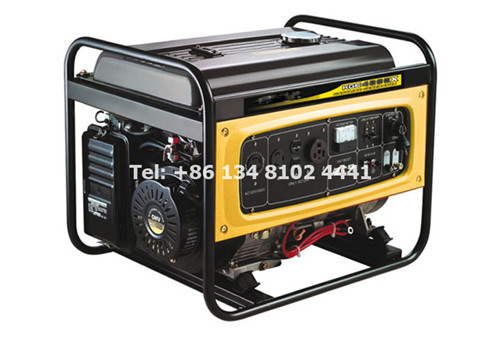

Gasoline Generator Set

Gasoline generator set
gasoline generator set
set type xggf6500e
rated frequency 50 hz
rated output power 4.5
maximum power (kva) 5.0
rated voltage 230
rated current 19.6
rated speed 3000
circuit mode single-phase three loop
power factor 1.0
insulation class b
number of poles 2
excitation mode selp-excitation constant voltage (avr)
panel type xet:ordinary panel ta: smart panel
output voltage 115230  120240
output jack two jacks
output terminal none
dc12v output terminal output
outline dimension: long x width x height xe 720×492×650
net weight (kg)  100
gross weight (kg) 115
noise (7m)db(a) 77
structural style open-shell
model km186fa
type single – cylinder, vertical, four strokes, direct injection
number of cylinders – bore x stroke 1-86×72
total displacelment (ml) 418
rated power (kw) 5.73000
compression ratio 19:1
rated speed rmin 3000
cooling way air cooling
lubrication method pressure splash type
starting mode x type, recoil starter etta type, electric starting
fuel 0# (summer), -10# (winter), -35# (severe cold)
lubricating oil sae10w30 (over cd class)
lubricating oil capacity (l) 1.65
starting motor capacity (v-kw) 12v  0.8kw
charging generator capacity (v-a) 12v  3a
battery capacity (v-ah) 12v  36ah
fuel consumption rate gkw.h 275.1  281.5
genset fuel tank capacity (l) xe:15
genset continuous running time (h) xe:8      .
