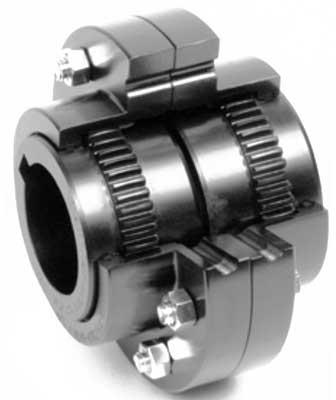

Contact SupplierThe Geared Couplings offered by us is a curved-gear tooth coupling that has flexible connection for a positive torque transmission. These couplings are suitable to compensate axial, radial and angular misalignments of adjoining shaft ends arranged in pairs. The array of Geared Couplings offered by us is widely appreciated by the clients, owing to its sturdy construction and dimensional accuracy. Besides, customers can be eased with the availability of these couplings at the most reasonable prices. These couplings can also be availed as vertical and horizontal couplings.
Special Features :
High mechanical consistencySimple and inexpensive type of gear couplingAll steel sleeves and hubsReinforced rubber seals with steel snap rings to hold lubricant in placeWide variety of special variations available such as full-flex, flex–rigid.Motor, floating shaft and spacer typesStandard configurations are available off-the-shelf
Applications :
Packing MachinesPaper Making MachineryConveyor SystemFood IndustryPainting LinesPlastic IndustryIndustrial FurnacesWood Working MachinesTextile MachineryMining IndustriesFilling and Cleaning MachinesFoundries and Rolling MillsAgitatorsSPMConstruction Machinery.
Torque Capacity | 0.5 - 290 kNm |
---|---|
Power Rating | 0.1 - 150 kW |
Speed | Maximum 5500 rpm |
Bore Diameter | up to 320 mm |
