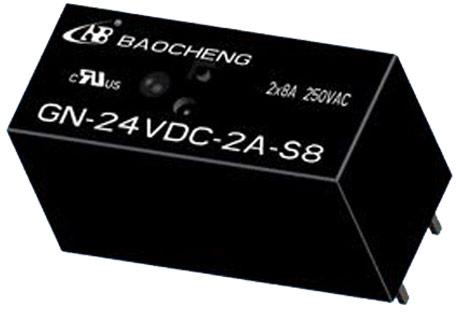

GN Relay

Contact Form:

1A, 1B, 1C; 2A, 2B, 2C

Contact Material:

AgCdO, AgSnO2

Contact Load Capacity:

1A,1B,1C:16A/250VAC;12A/250VAC

2A,2B,2C:8A/250VAC

Max. Switching Current:

16A

Max. Switching Power:

4000VA

Mechanical Endurance:

1*107OPS

Electrical Endurance:

1*105OPS

Technical Ratings

Insulation Resistance:

1000MΩ

Dielectric Strength(Between coil&contact):

5000VAC

Operate Time (Max.):

15ms

Release Time (Max.):

8ms

Ambient Temperature:

-40� ~ 85�

Terminal Type:

THT

Coil Ratings

Nominal Voltage

(5-48)VDC

Nominal Coil Power

0.4W
