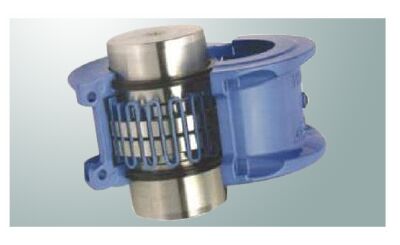

Grid Spring Resilient Coupling

Flexocon Grid Spring Resilient Coupling comprises mainly two hubs, Grid Spring and Cover to protect the spring to fly off to centrifugal force and to prevent Grease to come out. Grid Spring element is so designed that it provides resiliency for variable flexibility of a Coupling and damping properties making the Coupling very for drives involving high shock loads to the extent of 80%.

Misalignment - Angular, Parallel or Axial, that inevitably occurs between rotating shafts, which are independently supported, is also taken care of by the Spring element within allowable limits.

Features

• All Metal Construction having no fast wearing out components.
• Torsionally flexible Transmit full torque with dampened vibration and deduced peak load.
• Accommodates angular, parallel and axial misalignment.
• High ratings.
• Versatile design and interchangeability
• Easy assembly and maintenance
• Very low Downtime.
• Longer service life.

Range of Resilient Couplings

• Standard Couplings with vertically split cover.
• Standard Couplings with axially split cover.
• Flanged Couplings with vertically split cover.
• Flanged Couplings with axially split cover.
• Brake Drum couplings.
• Spacer type couplings.
