Contact SupplierWe are offering h beam flange straightening machine.

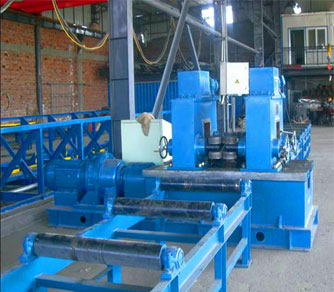

H beam flange straightening machine
this machine is specially used for the h-beam flange distortion straightening, which includes hydraulic and mechanical straightening type.
The structure of mechanical flange straightening machine is simple, with convenient and reliable operation.
The hydraulic type straightening has strong straightening force and high automation, which is developed firstly by us.
The straightening roller and powered roller is good alloy steel, which are made after heat-treating with long life using.
Model hyj600 hyj800 yj60 yj80
flange width 150-600 200-800 180-800 180-1000
flange thickness ã�â¢ã¯â¿â½ã�â¤20mm ã�â¢ã¯â¿â½ã�â¤40mm ã�â¢ã¯â¿â½ã�â¤60mm ã�â¢ã¯â¿â½ã�â¤80mm
min web height 160mm 350mm 350mm 350mm
material q235a q235a q235a16mn q235a16mn
straightening speed 5.7mmin 18mmin 7.5mmin 5mmin
motor power 9kw 25kw 29.5kw 37kw
overall size 3600*720*1800 3500*1500*1700 4050*2900*2190 4050*2900*2190
machine weight 7000kg 9000kg 26000kg.
