H07V2 R Type Cable Manufacturer in Mahesana Gujarat India

H07V2 R Type Cable 450/750V Flame Retardant

Get Latest Price

Minimum Order Quantity : 5000 Meter
Sold By : Johnsoncab Electricals Pvt. Ltd.

Send Inquiry

Product Specifications

Brand NameJohnsoncab
Voltage450/750V
Country of OriginIndia
Test Voltage2500 V
Elongation at Break Min. (%)150
Volume Resistivity at 27°C Min.x 10 Ω-cm
Short Circuit Temperature160°C
Flame PropagationFlame Retardant test as per IEC 60332-1
Minimum Bending Radius≥6 X Cable Dia
Tensile Strength Min. (N/mm²)12.50 N/mm²
Operating Temperature Range-20°C to +90°C
Supply TypeManufacturer, Exporter, Supplier, Importer

Preferred Buyer From : All over the world

Product Overview

SINGLE CORE HEAT RESISTANCE PVC TYPE TI 3 INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING

Applications :

H05V2-R & H07V2-R Cable is used for the installed in a fixed installation mechanically protected, inside a distribution and control device

Insulation Color Code :

Black
Blue
Brown
Gray
Orange
Pink
Red
Violet
White
Green
Green/Yellow
Yellow
Or as per customer requirement

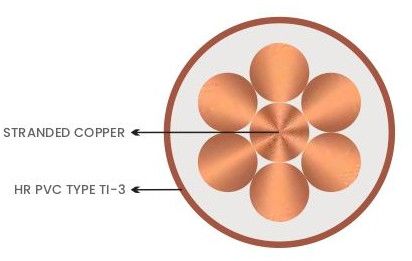

Cable Construction :

Conductor : Class 2 Stranded Plain Copper IEC 60228
Insulation : HR PVC type TI 3 to EN 50363-3

Features :

Design for Harmonized Acc. to European Standards
Very good Heat Resistance Property for Insulation
Special Grade Insulation PVC type TI 3 to EN 50363-3
Very good Insulation Resistance Property
Excellent Mechanical & Electricals property
Very good Current carring capacity
Very good Tharmal property for Insulation

Packing Details :

100 Meter
200 Meter
500 Meter
1000 Meter
2000 Meter
or As per Customer Requirement

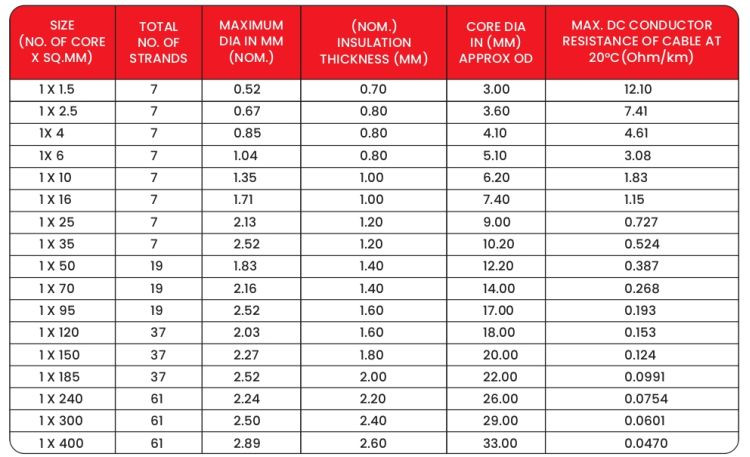

Specifications

Download Detail File : Click Here

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Manufacturer Of Photovoltaic Cables Solar -r, PVC Round Control Cable, PVC Multicore Flexible Cable, PVC Triple Core Flat Flexible Cable, PVC Triple Core Flat Regular Cable, PVC Double Core Flat Cable, PVC Single Core Industrial Cable, H07V2 U Type Cable, H05V2 U Type Cable, H07V U Type Cable, Triple Core Gold Flat Submersible Cable, Triple Core Premium Flat Submersible Cable, Photovoltaic Cable, Welding Cables Single Sheathed, Multicore Control Cable.
