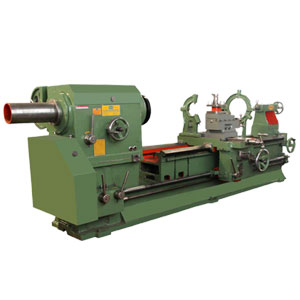

Heavy Duty Lathe

Sold By : H P Singh MAchinery Pvt Ltd

Product Specifications

Supply TypeManufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Product Overview

HPSM’ Heavy Duty Lathes are renowned throughout the country to give minimum maintenance cost. Lathes are famous for precision jobs, accuracy and trouble free performance. One of the leading manufacturer, supplier and exporter of heavy duty lathe machines HP Singh Machinery Pvt. Ltd. understands the customer values and their exposers so they are making these machines with latest technology based.

STANDARD ACCESSORIES

Head Stock

Rigid in design to withstand heavy cuts, Spindle of high tensile steel run on heavy taper roller bearings.

Norton Thread Box

Capable to cut English and Metric threads without any change of gears.

Special Accessories

Casting confirming to I.S. 210 having close grain structure free from foundry defects.
Working accuracy as per I.S. 1878 i.e. standard noems.
High metal removing capacity.
Selected materials used in construction for screw, shafts and gears.
All materials used are the best quality available.
Gears aenerated on imported precision machines & hardened.

STANDARD ACCESSORIES

Steady rest, Follow Rest, M.T. Center, Tray Coupling for Chuck, Face Plate, Change Gear Set, Motor Pulley.

Accesseries of Extra Cost

Telescopic Taper Turning attachment, Revolving Center, Chucks, Machine Lamp, Coolant Pump & Electricals. Quick change Tool Post.

Technical Specifications (IN MM)
Models	HPS-210		HPS-260		HPS-305				HPS-400				HPS-460				HPS-510
Diamensions	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm	ft	mm
Length of Bed	4½	1370	5	1525	7	2135	10¼	2150	8¼	2515	12¼	3735	8¼	2515	12	3700	16’1″	4905
	6	1825	6½	1980	8¼	2665	12	3660	10¼	3125	16¼	4955	10’2″	3100	12	3700	20’5″	6200
Diamensions	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
Width of Bed	11	280	13	330	15	380	15	380	18	460	18	460	21	535	21	535	21	535
Centre Height	9	230	10½	265	12	305	12	305	16	405	16	405	18	460	18	460	20	510
Spindle Bore	1¾	45	2	50	2â��	65	2â��	65	3â��	85	3â��	85	4â��	105	4â��	105	4â��	105
Admit between Centre	22	560	22	550	40	1000	80	2000	47	1200	95	2400	38	965	85	2150	132	3350
	34	865	40	1000	60	1500	100	2500	71	1800	143	3625	60	1500	85	2150	184	4675
Swing over Bed	18	460	21	535	24	610	24	600	32	815	32	815	36	915	36	915	40	1000
Swing over Cross	10	255	12	305	14½	370	14½	370	20	510	20	500	24	610	24	610	26	660
Gap Distance	7	180	8	205	8½	215	8½	215	13½	345	13½	345	19	485	19	485	19	485
Gap Depth from Centre	11½	290	14	355	18	460	18	460	23	585	23	585	27	685	27	685	29	735
Swing in Gap	23	585	28	710	36	915	36	915	46	1170	46	1170	54	1370	54	1370	58	1475
Dia of Lead Screw	1½	38	1½	38	1¾	45	1¾	45	2	50	2	50	2½	60	2¼	60	2½	65
H.P. Required	1		2		3		3		5		5		5		5		7.5
