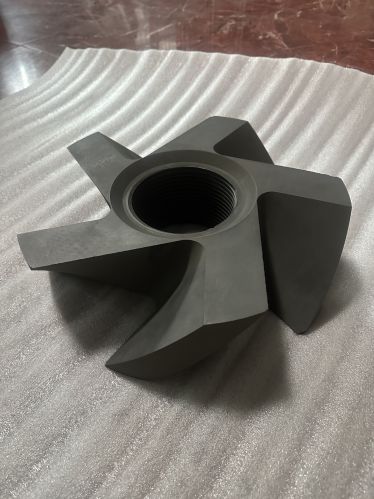

High Purity Graphite Rotors for Aluminum Degassing

₹ 2.69 Lakh - ₹ 5.37 Lakh / Piece

Materialhigh purity graphite
Lengthcustomized size and shape
Density1.72-1.75 G/cm3
ConditionNew
Supply TypeManufacturer
Preferred Buyer Location Malaysia only

Product Details

Lengthcustomized size and shape
FeatureEasy To Install
Density1.72-1.75 G/cm3
Number Of FlowerDegassing Rotor
Country of OriginChina
Materialhigh purity graphite
ConditionNew
Shore hardness42HSD
Flexural strength38Mpa
Compressive strength65Mpa

Characteristics of graphite rotor: (1) The mechanical strength is high, and it increases with the increase of temperature in the range of 2500℃. (2) Low thermal expansion coefficient. (3) Good thermal shock resistance. (4) It has no wettability to molten aluminum and does not react chemically with aluminum. (5) Good chemical stability, acid, alkali and organic solvent corrosion resistance. (6) The long-term use temperature in the air can reach 500 ℃.
1. Chemical stability: Graphite has good chemical stability at room temperature, and is resistant to acid, alkali and organic solvent corrosion.
2. Plasticity: Graphite has good toughness and can be rolled into very thin sheets.
3. Thermal shock resistance: When graphite is used at room temperature, it can withstand severe changes in temperature without damage. When the temperature changes suddenly, the volume of graphite changes little and no cracks occur.

Technical Parameters	YG-4	YG-5	YG-6	YG-7	YG-8
Density (g/cm³)	1.8	1.85	1.9	1.82	1.9
Electrical Resistvity (μΩ.m)	8~11	8~10	8~9	11~13	11~13
Thermal conductivity 100℃ (W/m.k)	121.1	139.2	140	85~110	85~110
Coefficient of Thermal Expansion (indoor temperature-600℃) 10-6℃	5.46	4.8	4.5	5.7	5.85
Shore hardness (HSD)	42	48	53	65	70
Flexural Strength (Mpa)	38	48	55	51	60
COMPRESSION STRENGTH (Mpa)	65	85	95	115	135
Elasticity modulus (Gpa)	9	11.8	12	11	12
Porosity %	17	13	11	12	11
Ash Content (PPM)	500	500	500	500	500
Granularity (μm)	13~15	13~15	8~10	8~10	8~10
Usage	common use	common use	Continuous casting, Sintering, High temperature metallurgy	EDM, Photovoltaic	EDM, Photovoltaic, Glass
