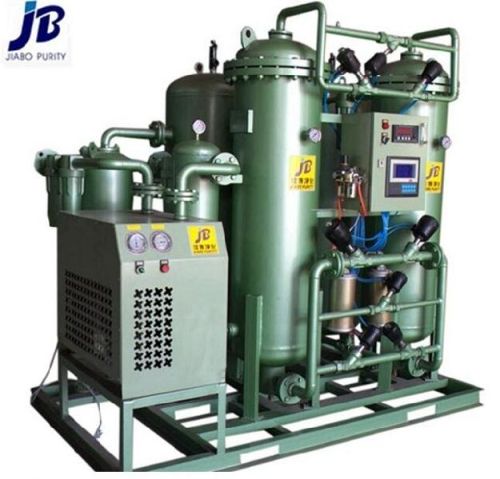

High Purity Nitrogen Generator, Brand Name : JIABO

Technical data and specification of psa nitrogen generator
technical index-nitrogen generator
compressed air pressure 0.8mpa
nitrogen purity 96%~99.9995%
ambient temperature 20�
nitrogen capactity 5~2000nm3h
air consumption 23~9000nm3h
specification-nitrogen generator-99%
model
nitrogen capacity
nm3h
air consumption
nm3h
air entry
dnmm
nitrogen outlet
dnmm
jbn10-99 10 30 15 15
jbn20-99 20 60 15 15
jbn30-99 30 90 25 15
jbn40-99 40 120 25 20
jbn50-99 50 150 25 20
jbn80-99 80 240 32 25
jbn100-99 100 300 40 25
jbn150-99 150 450 50 32
jbn200-99 200 600 50 32
jbn250-99 250 750 50 40
jbn300-99 300 900 65 40
jbn400-99 400 960 65 40
jbn500-99 500 1500 80 50
jbn600-99 600 1800 80 50
jbn800-99 800 2400 100 65
jbn1000-99 1000 3000 125 80
jbn1500-99 1500 4500 150 80
jbn2000-99 2000 6000 150 100
jbn2500-99 2500 7500 200 100
jbn3000-99 3000 9000 200 125
advantages of psa nitrogen generator
1. full automation
all systems are designed for un-attended operation and automatic nitrogen demand adjustment.
2. lower space requirement
the design and instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory.
3. fast start-up
start-up time is about 30 minutes to get desired nitrogen purity. So these units can be switched on & off as per nitrogen demand changes.
4. high reliability
it�s very reliable for continuous and steady operation with constant nitrogen purity. Plant availability time is better than 99% always.
5. Molecular sieves life
expected molecular sieves life is more than 10-years i.e. Whole life time of nitrogen plant. So no replacement costs.
6. low investment and energy consumption
7. simple operation and maintenance
