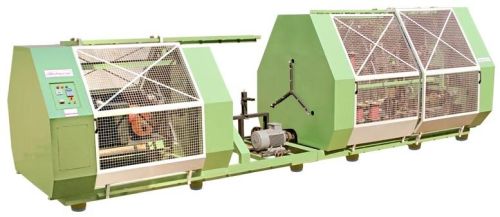

High Speed Rope Making Machines

Sold By : Makwana Plastomech Pvt. Ltd.

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Rope Making Machines are available in 2, 3 & 4 Strands ( 2, 3 & 4 Ply ) in different Models for Rope dia. 1.5 mm To 32 mm for the production of finished coiled ropes from natural and synthetic fiber from start to finish in one continuous operation. Ropes can be made from Nylon, Monofilament, Dan line, PPHDPE Tapes, Multifilament, Cotton, Jute, Manila and Sisal etc. from the same machine.

6 MM To 12 MM High Speed Rope Making Machine

Model No.	No. of Strand (No. of Ply.)	Rope Range in MM	No. of Pay of Packages (Feeding Bobbins)	Motor HP
MP/R-2A	3	2 - 6	3 x 1 = 3	5
MP/R-2B	3	2 - 6	3 x 2 = 6	5
MP/R-2C	4	2 - 6	4 x 1 = 4	5
MP/R-2D	4	2 - 6	4 x 2 = 8	7.5
MP/R-2E	3	2 - 6	3 x 6 = 18	10
MP/R-4A	3	4 - 8	3 x 6 = 18	10
MP/R-4B	3	4 - 8	3 x 8 = 24	12.5
MP/R-4C	4	4 - 8	4 x 6 = 24	12.5
MP/R-4D	4	4 - 8	4 x 8 = 32	15
MP/R-6A	3	6 - 12	3 x 10 = 30	15
MP/R-6B	3	6 - 12	3 x 12 = 36	15
MP/R-6C	4	6 - 12	4 x 10 = 40	20
MP/R-6D	4	6 - 12	4 x 12 = 48	20
MP/R-8A	3	8 - 16	3 x 14 = 42	20
MP/R-8B	3	8 - 16	3 x 16 = 48	20
MP/R-8C	4	8 - 16	4 x 14 = 56	25
MP/R-8D	4	8 - 16	4 x 16 = 64	25
MP/R-12A	3	12 - 24	3 x 20 = 60	25
MP/R-12B	3	12 - 24	3 x 24 = 72	30
MP/R-12C	4	12 - 24	4 x 20 = 80	30
MP/R-12D	4	12 - 24	4 x 24 = 96	30
MP/R-16A	3	16 - 32	3 x 28 = 84	30
MP/R-16B	3	16 - 32	3 x 32 = 96	30
MP/R-16C	4	16 - 32	4 x 28 = 112	30
MP/R-16D	4	16 - 32	4 x 32 = 128	40
