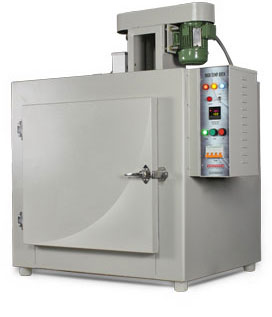

Contact SupplierModel "VS113" series are high temperature lab oven with air re-circulation. The blower is positioned above the top baffle wall of working chamber and is mounted on a motorised shaft. The shaft and blower is driven by a motor through a "V" belt drive and is supported on heavy duty pedestal bearing. This mechanism protects the motor from heat, makes it durable and runs smoothly.
Specially designed tubular air heaters are fit on either sides of working chamber. Its terminals are extended out side the oven body for better durability. The blower sucks in air from the top of the chamber and blows to the bottom of the chamber through the heater zone, re-circulating air and creating uniform temperature through out the chamber. Used for pre heating, drying, sterilizing, baking, aging, etc.
Models | Wattage (KW) | Internal dim. H.W.D (cm) | External dim. H.W.D (cm) | Shelves No.s |
---|---|---|---|---|
VS 113 A | 2.50 | 35 x 35 x 35 | 105 x 96 x 74 | 2 |
VS 113 B | 3.00 | 45 x 45 x 45 | 115 x 106 x 84 | 3 |
VS 113 C | 4.00 | 60 x 45 x 45 | 130 x 106 x 84 | 4 |
VS 113 D | 5.00 | 60 x 60 x 60 | 130 x 121 x 100 | 4 |
