Product Details
Company Details

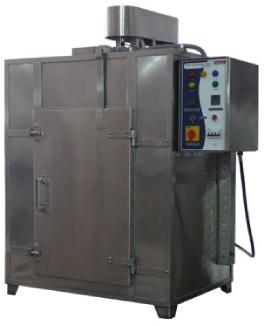

TRIPLE walled in construction.
The Inner Chamber is wound by a layer of thick Mineral wool. Gap between the walls filled with initial layer of Asbestos sheet and dense second layer of high insulation low thermal mass Glass wool.
DIGITAL HIGH TEMPERATURE SAFETY CUT-OFF
INCORPORATED WITHIN THE UNIT.
ISI Marked Air Heating Elements are provided on the side walls of the chamber.
Superior quality contactor for cutting / restoring power to the heaters are incorporated.
Doors provided with safety cut-out system disables the Motor & the Heaters when doors are opened in operational mode.
Provided with heavy duty S.S. LM-304 ball cages for locking arrangement
Provision for forced air circulation using motorized blower.
Unit works on either 230 V AC, 50 Hz. 1 Phase Supply OR 440 V AC, 50 Hz. 3 Phase Supply.

Standard Model – HIPL- 025

Exterior made of Mild Steel [ 20 swg. ] constructed on thick iron angle framework.
Pre-heating chamber & Outer chamber made of Mild Steel [ 20 swg.] duly powder coated and inner chamber made of Stainless Steel LM-304 grade [ 18 swg.].
Microprocessor based AUTO TUNING PID Digital Temperature Indicating Controller with built in Timer upto 999 hrs. to set the sterilization time cycle.
DIGITAL High Temperature Safety cut off provided.
Rod type Shelves provided are made of Stainless Steel

TEMPERATURE RANGE : Ambient + 5°c to + 350°c

TEMPERATURE ACCURACY : ± 1 °c

TEMPERATURE ACCURACY : ± 0.5 °c

Optional :

Microprocessor based AUTO TUNING PID Digital Temperature Indicating Controller for precise Temperature control with BUILTIN Digital Timer in lieu of standard Controller (FOR STANDARD MODELS ONLY)
Microprocessor based PROGRAMMABLE PID Controller cum Indicator with Printer Interface to connect Dot Matrix Printer. Print interval programme can print Date, Time & Temperature with print interval settable between 1 to 99 minutes [ without Printer ]
Same as above but with PC software & connectivity

Chamber Size W x D x H		Rating Watts	Shelves
In inches	In Cms	Rating Watts	Shelves
18” x 18” x 18”	45 x 45 x 45	5000 W	02
18” x 18” x 24”	45 x 45 x 60	6000 W	03
24” x 24” x 24”	60 x 60 x 60	7500 W	03
24” x 24” x 36 ”	60 x 60 x 90	9000 W	04
