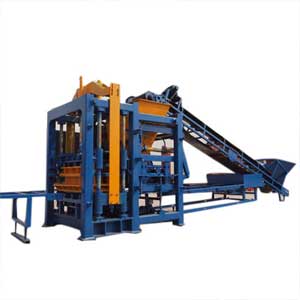

High Vibration Fly Ash Brick Making Machine

Specifications:

• The main body from Heavy Plates &; Pipes guide rod will be chromium plated
• 3 Stroke in a minute
• 6 Pavers in a Stroke
• 8 bricks in a stroke

Pan Mixer Details:

• Pan Ø: 1500 mm
• Side Wall Height: 500 mm
• Bottom Plate: 12 mm M.S
• Side Wall Plate: 6 mm M.S
• Motor: 7.5 HP, 1440 rpm 3 phase

Power (Load):

• Hydraulic: 10 HP
• Taper Conveyor: 2 HP
• Down Conveyor: 1 HP
• Vibrator: 2 HP
• Pan Mixer: 7.5 HP X 2 NOS
• Total Power: 30 HP

Hydraulic Cylinder:

• Ramming: 1 no
• Box: 2 nos
• Feeder: 1 no
• Wooden Pallet Conveyor: 1 no

Conveyor Belt:

• Conveyor Belt Thickness: 8 mm
• Length: 22 foot

P.L.C Control:

• Well designed PLC control system
• Auto Pallet Function: For hydraulic
• Tank Capacity for Hydraulic Oil: 400 liters
• Single Layer Feeder box Electrical PLC control panel
• Bricks Removal: Through 10 ft conveyor
• Total Weight: 3500 kg
• Operating Pressure: 220 bar-100 ton
• Mixing Rough Material: From pan mixer to conveyor through conveyor to storage box, then storage box to feeder and to auto ram and box
