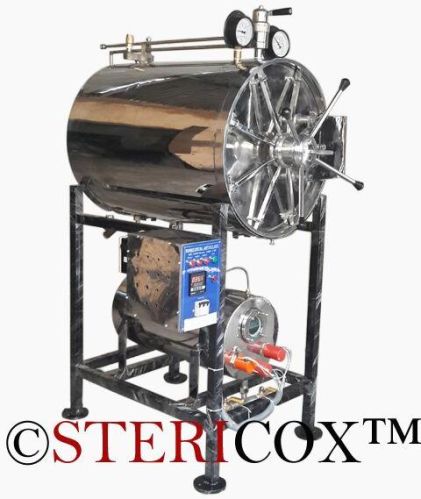

1kw Horizontal Autoclave

Product Specifications

• ShapeHorizontal
• Power1kw
• PressureAutomatic pressure control switch, Analog dial  type pressure gauge, Manual pressure release valves for chamber & jacket
• External chamberSS 304
• OptionalWorking at 30 psi with 134°C, Provision of vacuum drying, Low water cut-off, Digital pressure display, Auto release of pressure through solenoid valves .
• HeatersISI mark immersion heaters
• StandChrome plated MS
• ConstructionTriple Walled
• Multiport valveSelection of sterilization, Only chamber pressure release, Full chamber / jacket both pressure release
• Radial locking systemChrome plated MS
• Working pressure15 to 20 psi
• Inner chamberSS 304 with full argon welding
• All pipingSS 304
• FinishingMirror finished inner and external surface
• Chamber condensate lineFitted with steam trap and check valve
• SensorPT100
• BoilerMade of SS 304 sheet, water inlet & outlet valves, Water level glass window, Boiler safety valve
• Controller typePID temperature controller, Digital timer controller with END cycle buzzer
• Power supply440 Volts 50Hz, Three Phase
• TrayPerforated tray made of SS 304
• InsulationGlass wool
• Standard fittingsMains MCB, Silicon gasket, Vacuum breaker, Stream trap, Pressure safety valve, Boiler safety valve .
• LIDSS 304 w/ Pressure locking device
• Working temperature121°C
• Hydraulic tested on40 psi
• Design TypeCylindrical or Rectangular
• Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
