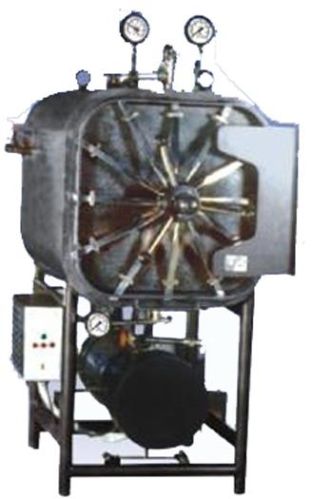

    Horizontal Autoclave

    Horizontal Autoclave

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

          Contsrtuction The unit has outer chamber, inner chamber, Boiler, Lid and Jacket - all made of AISI 304 grade stainless steel. For controlling sterilization cycle, a three way valve....
    View More Details
    Send Enquiry

    Company Information

    Ctech Instruments
    location Vastral, Ahmedabad, Gujarat
    4.0/5fill iconfill iconfill iconfill icono icon(1)
    View Number
    • calendar Member Since 11 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon




    ContsrtuctionThe unit has outer chamber, inner chamber, Boiler, Lid and Jacket - all made of AISI 304 grade stainless steel. For controlling sterilization cycle, a three way valve or a multiport valve - made of S.S. is provided. The unit have a very efficient ms radial locking arrangement, fitted on ms ring, duly chrome plated. It is supplied complete with vaccum breaker, water level indicator, steam trap and automatic pressure control switch. The whole unit is mounted on a robust tubular ms stand. Operatable on single / three phase, 220/440 volts, 50Hz A.C. Supply.

    Mode of HeatingElectrically heated by special flange type / immersion type heaters bearing ISI mark, to work on single / three phase, 220/240 volts, 50Hz, A.C. supply.

    Working PressureThe pressure inside the chamber is variable from 5 psi to 20 psi. But the normal recommended pressure for sterilization process is 1.2 Kgf/cm2 (15 psi).

     Working Temperature : 121 deg.C
    Working Pressure : 1.26 Kgf/cm2 (15 psi)
    Hydro Test Pressure : 2.5 Kgf/cm2 (35 psi)

    Working Chamber
    SizeVolumeLoad (KW)
    400 x 600 mm78 Ltrs6 KW
    500 x 900 mm135 Ltrs10 KW
    550 x 750 mm152 Ltrs9 KW
    400 x 1100mm162 Ltrs12 KW
    500 x 1200mm185 Ltrs12 KW
    600 x 1200mm300 Ltrs18 KW
    750 x 1200mm525 Ltrs18 KW

    Optional Accessories
    • Semi Automatic Pressure Control Switch.
    • Automatic Low Water Cut Off Device
    • Mechanical Timer (0-60 Min)
    • Mechanical Timer With Alarm System
    • Solid State Digital Timer (0-120 Mins)
    • Solid State Digital Temperature Indicator.
    • Micro-Processor Based Programmable Timer Controller.
    • Micro-Processor Based Programmable Timer (0-120)
    • Circular Temperature Chart Recorder (24 Hours/Seven Days)
    • Strip Chart Recorder
    • Digital Pressure Transducer Cum Indicator
    • Automatic Pressure And Temperature Mapping System With Validation Soft Ware (Without Pc)

    Rubber Gaskets Neoprene rubbler or silicon rubber
    Size
    250 X 450 MM
    300 X 500 MM
    350 X 550 MM
    450 X 600 MM
    500 x 1200mm
    550 X 750 MM

    Spare Heaters (In-house custom Developed SS Heaters)
    2 KW
    3 KW
    4 KW
