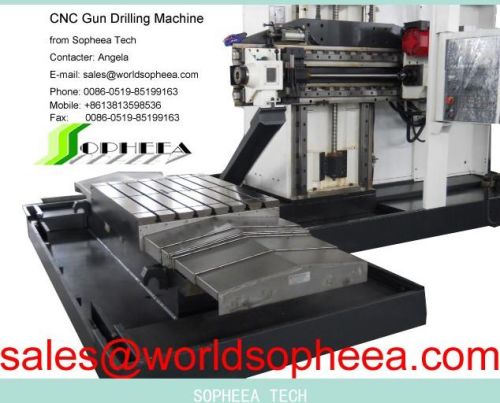

Horizontal CNC Deep Hole Drilling Machine

1)drilling capacity
Machining hole diameter: 3-30mm
Machining depth: 1500mm

2)Travel

Table horizontal(x): 3000mm

Main spindle vertical(y):1500mm

RAM(w): 500mm

3) speed
Max. Spindle speed:6000rpm
Feed speed:0~3000mm/min
4) power
Spindle motor:7.5 kw
X axis motor:30 nm
Y axis motor:30 nm
Z axis motor:12 nm
Total power:36 kw
5) table
Max. Loading capacity:10 ton
Area:2200 x 1200 mm
6) coolant
Hydraulic pressure:2~10mpa
Rate of flow:6~110l/min
7) size & weight
Floor space:6600x5900mm

Machine height:3600mm
Machine weight:21 ton
8) cnc equipment:

Fanuc system
