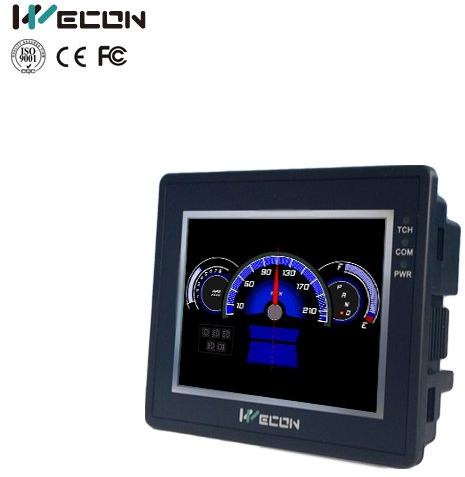

HUMAN MACHINE INTERFACE, Condition : Used

Product Specifications

• Printer PortUSB printer/ Serial port Printer
• RTCYes
• Serial Port COM3No
• EnclosureABS
• CE CertificationEN61000-6-2:2005, EN61000-6- 4:2007 Standard
• ProtectionIP65 (Front panel)
• Insulation ResistanceUpon 20MΩ 500VDC
• Storage Temperature-20 ~ 70℃
• CPU32-bits 400MHz RISC
• BacklightLED
• Backlight Life50,000 hours
• Humidity10 ~ 90%RH
• Flash128MB
• Power Supply24V DC(12~28V DC)
• OS2416 Platform
• Environment.Working Temperature                   -10℃ ~ 60℃
• FCC Certification                    FCC Class A
• USB PortUSB Host USB 2.0 x 1 USB Client USB 2.0 x 1
• CoolingAir cooling
• Resolution320*240
• Contract500:01:00
• RAM                 64M DDRAM
• Colors65536 colors (16bit)
• Screen Size                3.5 inch
• EthernetNo
• Withstand Voltage500V AC (<1 minute)
• Power IsolationBuilt-in Power Isolation
• Mounting size(mm)                  91.0W* 73.0H
• Software          LeviStudioU Programming Software
• Seismic resistance10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
• Serial Port COM1RS232/RS422/RS485 (RS232+RS422)
• Dimension(mm)96.0W*81.0H*37.0D
• Touch Screen         High precision four-wire resistive
• Allowed Power Fail                  <5ms
• Brightness300 nit
• Serial Port COM2                            No
• Power<5W
• CANNo
• Business TypeService Provider
