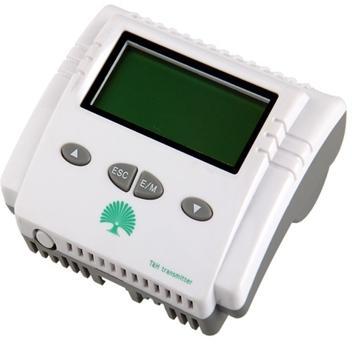

Model:TH100

Rated voltage

DC12V

Measuring range

Temperature

-20^oC~70^oC

Humidity

0-100%rh

Measuring accuracy

Temperature

±0.5^oC

Humidity

±4.5%rh

Output range

communication RS485 MODBUS protocol

Temperature

-20^oC~70^oC

Humidity

0-100%rh

Electrical isolation

Between the communication port

AC500V,1mA, 1min

Between communication end and the main circuit

AC500V,1mA,1min

EMC indicators meet
the European standard

N 55022 CLASS B, EN 55024,CISPR 22 CLASS B,

CISPR 24

IEC 61000-3-2,IEC61000-3-3,IEC 61000-4-2,

IEC 61000-4-3,IEC61000-4-4,IEC61000-4-5,

IEC 61000-4-6,IEC61000-4-8,IEC 61000-4-11

Meet the national standard:GB 9254 CLASS B, GB/T 17618

GB 17625.1, IEC 17625.2, GB/T 17626.2, GB/T 17626.3,
GB/T 17626.4, GB/T 17626.5,

GB/T 17626.6,GB/T 17626.8, GB/T 17626.11
