Humidity Sensors

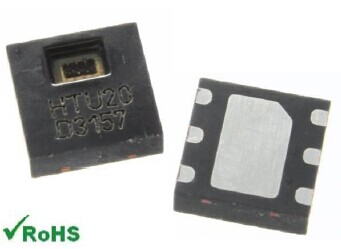

Htu20d digital relative humidity sensor with temperature output 5%accurancy
htu20d is a digital temperautre and humidity sensor which is with range 0-100%rh, accurancy +-5%. It is low cost but with high performance.
model number: htu20d
product specification
digital relative humidity sensor with temperature output htu20d
description
htu20d(f), is a new digital humidity sensor with temperature output of meas. Setting new standards in terms of size and intelligence, it is embedded in a reflow solderable dual flat no leads (dfn) package with a small 3 x 3 x 0.9 mm foot print. This sensor provides calibrated, linearized signals in digital, i²c format.
Htu20d(f) digital humidity sensors are dedicated humidity and temperature plug and play transducers for oem applications where reliable and accurate measurements are needed. Direct interface with a micro-controller is made possible with the module for humidity and temperature digital outputs. These low power sensor are designed for high volume and cost sensitive applications with tight space constraints.
every sensor is individually calibrated and tested. Lot identification is printed on the sensor and an electronic identification code is stored on the chip – which can be read out by command. Low battery can be detected and a checksum improves communication reliability. The resolution of these digital humidity sensors can be changed by command (812bit up to 1214bit for rht).
with meas’ improvements and miniaturization of this sensor, the performance-to-price ratio has been improved – and eventually, any device should benefit from the cutting edge energy saving operation mode.
