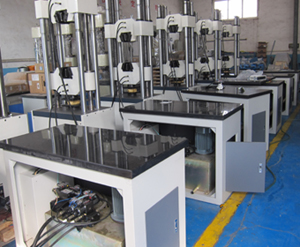

Hydraulic Universal Testing Machine, Measuring Instrument

We are offering universal testing machine series
hydraulic universal testing machine.
wew series are computer lcd display, all kinds of parameters and curves can display on the computer screen real-timely, which also have the functions of the printing test reports and data processing.
waw computer control electro-hydraulic servo series are mainly used in testing of 30kn-2000kn, electronic measure collecting test data, programming full automatic test, automatic analysis, printing report and curves.
the above two series testing machine host adopts cylinder down-setting, mainly used for metal, nonmetal tensile, compression,bend and shear tests. It is applicable to metallurgy, construction, light industry,aviation, spaceflight, materials, universities and colleges, scientific research institutes and other fields. The test operation and data processing accord with gbt228-2002 (metal material room-temperature tensile testing method).
main technical parameters
type specification wew-100b wew-300b wew-600b wew-1000b wew-2000b
waw-300b waw-600b waw 1000b waw-2000b
max. Test force(kn) 100 300 600 1000 2000
relative error of indicating balue â±1%
max. Tensile space(mm) 560 620 690 620 700
max. Compression space (mm) 530 550 620 580 600
clamping diameter range of round sample (mm) î¦6-î¦22 î¦6-î¦26 î¦13-î¦40 î¦14-î¦45 î¦20-î¦70
clamping diameter range of flat sample (mm) 0-15 0-30 0-40
max.space of bending supporting point (mm) 400 500
diameter of cutting sample (mm) î¦10
space between two side pillars(mm) 460 495 570 600 880
total power(kw) 1.2 2 2.1
outline size (lxwxh)mm host 750x450x1780 800x500x1950 950x630x2265 980x650x2220 1500x900x3500
worktable 1400x960x830
