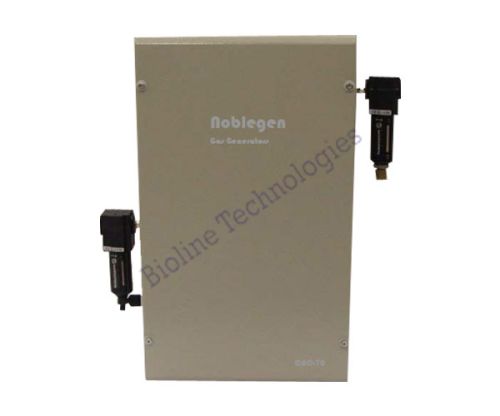

    Hydrocarbon Free Gas Generator

    • Ambient Temp range 5-35°C (41-95°F)
    •  Air Inlet Pressure Up to 8 barg (116 psig)
    •  Outlet Pressure Up to 8 barg (116 psig)
    •  Air Inlet Flow See above table
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 13 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    •  Air Inlet Pressure Up to 8 barg (116 psig)
    •  Electrical Supply 220v a.c. / 1ph / 50Hz or  110v a.c. / 1ph / 50-60Hz
    • Ambient Temp range 5-35°C (41-95°F)
    •  Outlet Pressure Up to 8 barg (116 psig)
    •  Air Inlet Flow See above table
    •  Inlet / Outlet connections G 1/4” (BSP) Female

    Noblegen’s Zero Air Purifiers are some of the smallest and most efficient Hydrocarbon-free air purifier systems for laboratory use. Utilising the reliable and efficient heated catalyst technology to remove THC including methane to less than 0.1 ppm. The purifiers work off a supply of compressed air, however a 3.0 L/min unit is available with internal compressor for complete standalone use. Either bench or wall mounted and runs from a single phase supply, indicators are used to display heating and ready to use modes. The Noblegen Zero Air Purifiers are an important part of any efficient laboratory removing the need for high pressure gas cylinders



    Standard Features
    > PID t emper a ture control
    > Runs off Lab air supply
    > Bench or wall mount
    > Low maintenance
    > 2 years warranty

    Options
    > Additional inlet & oulet fitration on request
    > Outlet regulator and gauge

    Benefits
    > Replaces high pressure gas cylinders
    > Constant gas quality
    > Compact design
    > Ideal for low and medium flow applications
    > Very cost effective , f ast payback





    ModelOutlet Flow
    L/min
    Dimensions mm (ins)Weight
    Kg (lbs)
      Height
    mm (ins)
    Width
    mm (ins)
    Depth
    mm (ins)

     ZAG-1 1.5 500 (19.6) 300* (11.8) 200 (7.9) 10 (22)
     ZAG-3 3.0 500 (19.6) 300* (11.8) 200 (7.9) 10 (22)
     ZAG-16 16.0 600 (23.6) 400* (15.7) 250 (9.8) 15 (33)
     ZAG3-1* 3.0 650 (25) 320 (12.5) 650 (25) 40 (88)
