Incinerators Pyrolytic, Controlled Air

The incineration process can be understood through a triangular puzzle. This triangle is an isosceles triangle with two equal and one unequal side. The three sides represent the 3Ts of incineration i.e. Time, Temperature and Turbulence. If one side is decreased then there has to be compensatory increase in the other two. A perfect balance between all three has to be maintained for successful incineration. And BLACKHOLE incinerators have achieved this perfect balance -

1100°C (Tp) + 2Sec (Tr) + Tb = BLACKHOLE

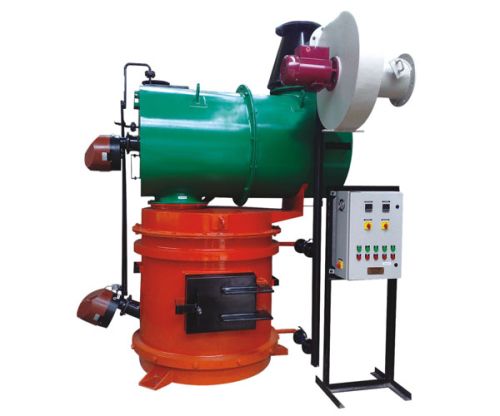

BLACKHOLE incinerators are twin chamber, fixed hearth, pyrolytic and controlled air incinerators available up to a capacity of 500 kgs/hr for solid and 1000 kgs/hr liquid wastes. For lesser amount of waste we also supply packaged incinerators with the capacity of up to 50 kgs/hr. Incinerators with capacity of more than 50kgs/hr are supplied in SKD conditions and are later assembled on site.

Optional Accessories Offered

• Automatic solid waste feeding and ash removal systems.
• Liquid waste feeding systems for automatic feeding of liquids.
• Continuous emission monitoring and recording systems.
• Heat recovery systems.

Salient Features

• Conforms to national & international pollution norms - CPCB, USEPA & EU.
• Suitable for a wide range of wastes.
• Auxiliary fuel option of oil or gas.
• CE certified burners sourced from Europe.
• Fully automatic, safe and easy to use.
• PLC based control panel.
• Castable and joint less refractory ensures longer life and durability.
• Packaged range of incinerators are shop assembled, Plug ‘n’ Play type, ready for instant use, require minimum site work and space for installation.
• Equipped with ample number of safety interlocks.
• The controlling system is foolproof and cannot be tampered with thus ensuring that none of the safety interlocks and operating procedures are bypassed.
• The motors in the system are operated by VFDs which not only prolong their life but also reduce the energy consumption.
