gm induction heaters are designed to heat the bearings and other shrink-fit components prior to mounting, using latest technology intelligent microcontroller based electronic controls.
the life of bearings and other torque transmitting steel components, which are shrunk-fit on shaft, may get cut short due to rough handling and faulty installation or mounting methods. This can be avoided by expanding them by induction heating for the purpose of mounting of the component.
gm induction heaters are available in different models for mounting, range of bearings having bore size from 10 mm and above. Fast, safe and economical heating of bearings is best features of gm induction heaters.

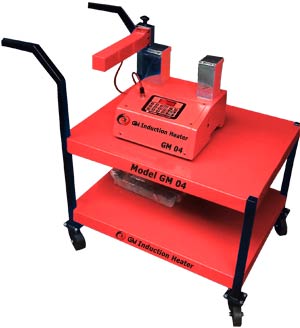

gm induction heater - gm 04Â is light weight and portable for better performance. It has power capacity of 2 to 4.0 kva. The controls are intelligent microcontroller based programmable electronic controls. It has two operating modes, temperature mode and time mode. Both are controlled through feather touch key board. Both modes can be seen at the time of operation. It can also be used to heat bearings of larger diameter using a pair of raiser blocks size 55 x 55 x 130 mm. The unit can also be used to heat a plate of any magnetic material by placing the plate in place of the horizontal yoke across the vertical supports.
| TECHNICAL DATA SHEET | |
| Product Data | GM 04 |
| 1) Power | 2.0 to 4.0 KVA |
| 2) Voltage | 230V or 110V±10%, 50-60Hz |
| 3) Current (Max) | 10 / 18A |
| 4) Power Control | 25% 50% 75% & 100% |
| 5) Temperature Control (Range) | 0-250oC |
| Maximum Temperature | 400oC |
| Accuracy Temperature | ± 3oC |
| 6) Time-Control | 0-99 Minutes |
| 7) Residual Magnestium | <1A / cm |
| 8) Overall dimensions (wxdxh) (mm) | 300 X 270 X 330 |
| 9) Space between supports (wxh) (mm) | 140 X 130 |
| 10) Weight (Main Unit) | 27 Kg. |
| 11) Weight with Standard Yokes | 32 Kg |
| 12 ) Horizontal York Sizes (mm) | 20 X 20 X 250 for bore dia. 25 MM & above |
| 30 X 30 X250 for bore dia. 40 MM & above | |
| 55 X 55 X 250 for bore dia. 75 MM & above | |
| 13) Colour of the Equipment | RED / BLUE & APPLE GREEN |
| Optional Accessories | |
| 1) Horizontal Yoke Sizes (mm) | 10 X 10 X 250 for bore dia. 12 MM & above |
| 15 X 15 X 250 for bore dia. 20 MM & above | |
| 40 X 40 X 250 for bore dia. 55 MM & above | |
| 45 X 45 X 250 for bore dia. 61 MM & above | |
| 2) Digital Thermometer (0-500 C) | |
| 3) Roll-Sliding Model | |
| 4) Swing Arm Model | |
| 5) Riser Block (Pair) (mm) | |
| 6) Magnetic Temperature Probe | |
| 7) Equipment Trolley | |
| 8) Hydraulic Equipment Trolley | |
| GM Induction Heater Range | ||
| Induction Heater GM04 (2 to 4KVA) | Induction Heater GM10 (6 to 10KVA) | Induction Heater GM12 (12 to 16KVA) |
| Induction Heater GM25 (25 to 40KVA) | Induction Heater GM50 (50 to 80KVA) | Induction Heater GM100 (100 to 150KVA) |
| Induction Heater GMIR (25 to 150KVA) | Motorised Bearing Extractor GM BEM 30 | Motorised CTRB Extractor GM CTRB100 |
| GM Hydraulic Product Range | ||
| Hydraulic Puller GMP - Series | Hydraulic Puller with Separate Hand Pump GMS - Series | Hydraulic Puller with Inbuilt Pump GMM - Series |
| Hydraulic Pullerwith with Inbuilt Pump & Separator GMR - Series | Bearing Pullers GMBP - Series | Bearing Fitting Tool Kit |
| Highpressure Oil Injector GM IP - Series | Hydraulic Bearing Extractor GM BET - Series | Hydraulic Power Pack GM PC - Series |
| Hydraulic Stackers GM ST - series | Hydraulic Pallet Truck GM PT - Series | AC / DC Stackers GM ST 902 / 903 - Series |
| Hydraulic Scissor Lift GM SS 910 /909 Series | Drum Leafter cum Tilter GM DT - series | Hydraulic Press GM PP - Series |
| Hydraulic High Pressure Valves GM HV - Series | ||
