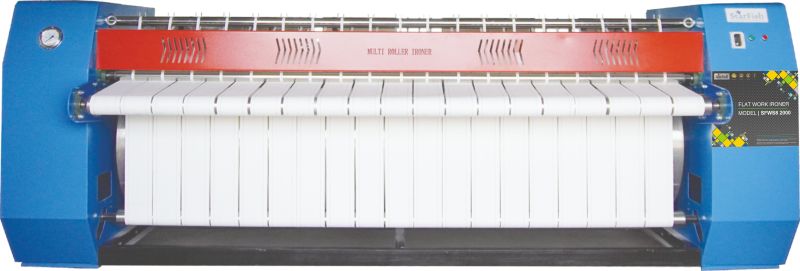

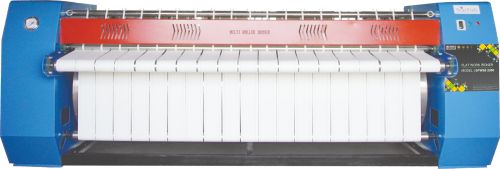

Electric Industrial Flat Work Ironer

₹ 4.63 Lakh / piece

Driven TypeElectric
ConditionNew
Finger GuardLimit Switch
Drum Thickness4 mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Product Details

Driven TypeElectric
ConditionNew
Country of OriginIndia
Ironing BeltCotton
Ironing Belt Width150 mm
Finger GuardLimit Switch
Drum Thickness4 mm
Ironing Belt AdjustmentScrew Rod
Heating TypeSteam
Consumption Per Hour80 Kg
BendingCNC
Roller Dia in mm800
CuttingCNC
Over All Dimension in mm3200 x 1400 x 1250
ModelSFWS8 2000
Shaft GlandPlumbe Block Bearing
Motor Power in kw1
Side CoverMild Steel
Pressure of Steam Mpa0.4-0.6
Volt415/ 3Ø
No of RollersSingle
Drying Spees RpmAdjustable Through VFD
Steam Inlet in mm37
Weight in Kgs900
Control BoxMild Steel with Lock
Roller Length in mm2000
Overal FinishPowder Coated
Main DrumStainless Steel 304 Grade
LogoStarfish Engraving with LED Lidhts
FoundationNot Required
Base FrameMild Steel Channel
Supporting RollersMild Steel Covered with SS Sleeve
Back CoverMild Steel
Side PanelMild steel
Emergency SwitchYes
WeldingLaser MIG/TIG
Speed of Ironing m/min7.5
Nuts,Bolts and ConnectorsMild Steel
Control PanelManually Operated by Switches

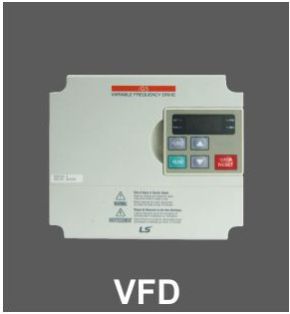

Ironer has Variable Frequency Drive for speed adjustment. Customer can change speed according to fabric thickness to enhance ironing efficiency. Ironing roller of Diameter 800 mm is made with Stainless steel. Roller uses Galvanization technology to extend the life.

Heating by using stainless steel cylinder shows good effect. Maximum touchable area 300 Degree roller circle effectively increase work area and improve ironing speed, heat energy and reduce the Running cost.

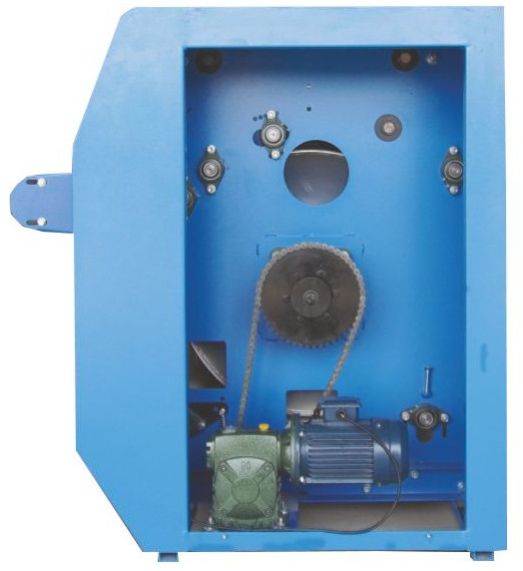

Drive motor linked with gear box will ensure stable running of roller. The main machine made by cutting laser machines and welded with high quality welding will provide the elegant look, smooth running, Accurate transmission, quality running and long life span. Ironer belt of best quality which withstand high temperature. Compact structure saves a lot of space by small covering area.

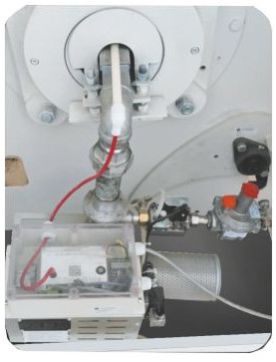

Several types of heating type by outside connecting steam, gas and electric are available. Also available with Return feed and Rear return is optional.

Note: Above mentioned price is based on the adult care service plan (Note: Tax and Transportation Charges are Extra). Prices may vary according to the size and models. [Please contact us to get the latest price & know more about our service plan]
