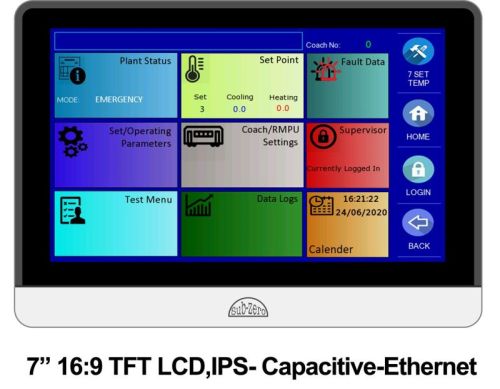

Contact SupplierDisplay | 7" 16:9 TFT LCD, IPS |
Resolution (WXH) | 1024 X 600 |
Colors | 24-bit Colors/16-bit Colors |
Brightness | 450 cd/m2 |
Backlight | LED |
Backlight Life | 50000 hours |
Touch Panel | Glass + Glass projective multi-touch capacitive HMI |
CPU | 600 MHz ARM Cortex-A8 |
Memory | 128MB Flash + 128MB DDR3 |
RTC | Built In |
Ethernet | 10M/100M Ethernet |
SD Card | Supporting |
USB Port | 1USB Host 2.0, 1 USB Device 2.0 |
COM Port | COM1: RS232/RS485/RS422 COM2/COM4: RS485 |
Power Consumption | < 6W |
Input Power | DC 24V, Input Range: DC 9V - 28V |
Power Protection | Protected from thunderstrike and surging |
Power Down Allowed | < 5mS |
CE & RoHS | Complied with EN61000-6-2:2005 EN61000-6-4:2007, RoHS |
Operating Temperature | -10 to 60°C |
Storage Temperature | -20 to 70°C |
Operating Humidity | 10-90% RH (No Condensation) |
Vibration Endurance | 10-25Hz (X/Y/Z 2G/30Min) |
Cooling | Natural air cooling |
Degree of Protection | Front IP65 (with NEMA Panel), Back IP20 |
Shell Material | ABS + PC |
Panel Cutout (WXH) | 178mm X 125mm |
Dimension | 185.1mm X 131.1mm X 30mm |
Weight | About 680g |
DownloadProject | USB Disk/USB Device/Ethernet |
