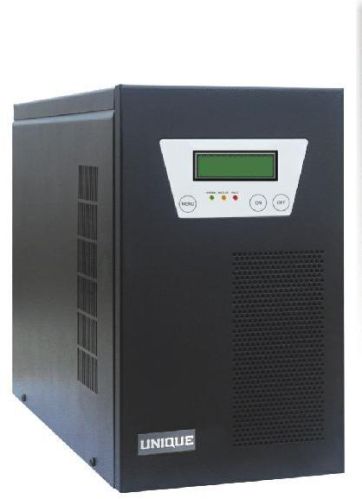

Interactive Pure Sine Wave UPS

Sold By : Anisun Solar, LLP.

Product Specifications

PhaseSingle Phase
Voltage Range140-270 V AC
ApplicationsSchools, Residence, Offices
PerformanceOptimum
Power backupExcellent
DurabilityLong Life
Supply TypeSupplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Unique is a company that has more than 20 years expertise in the business of Renewable Energy and Power conditioning equipments. We are proud to introduce a very unique pdroduct-SU Series Pure Sinewave high backup Line interactive UPS.that will make our competitor ‘s produce powerless. SU Series among very few UPS products to provide the offered feature. SU Series products are manufactured with technology of lhisgh international standards, enabling the customers to avail a futuristic product within affordable cost

Features:
Intelligent Micro controller. Informative LCD Display. Wide Input voltage window 110V to 280V. Four step Automatic Voltage Regulator. SMPS based Charger with latest pulse charging technology. Selectable Charger for different AH Batteries. Cold start Facility. High Efficiency. Compact Design.

Applications:
M.ajor Power Backup source in corporate as well as Call Center. PLCs, Workstations. Computer peripherals. Medium Hub, Scanners, Printers. Browsing Centers. , Satellite Receivers. Aviation.,Broadcasting. Emergency Power systems A.C. and all Compressor based applications. Petrol filling machines. Life saving Medical Equipments. Tread Mill. Photography. Water pumps & all motor based applications.

Technical Specification 01

Model Capacity		SU800	SU1000	SU1500	SU2000	SU2500	SU3000
		800VA	1000VA	1500VA	2000VA	2500VA	3KVA
				560W	700W	1050W	1400W	1750W	2.1KW
Input	Voltage range Frequency Range AVR	110V-280V AC
		50Hz +/- 5Hz
		Four steps AVR 220v +/- 10%
Output	Inversion frequency O/P waveform			220V +/- 3%
		50HZ +/- 2%
		Sine Wave
	Dc Voltage			12V		24V	24/36/48V
	THD
	Transfer time
	Recharge current			10-15A			15A-25A
	Transfer efficiency			0.85			90-96%
	Protections			Protection against short-circuit, overload
	Communication port			RS 232
	Unit size (mm)			372122195			480194335
	Net weight (KG)			7.8	10.8	13.5	23.3	24.5	26
	Gross weight(KG)	8	12.3	14.9	24.8	26	27.5
	Shipping Size(mm)	490236290			560280430
	Quantity	2pcs.			1pcs

Technical Specification 02

Model Capacity		SU5000	SU6000	SU8000	SU10000	SU15000
		5KVA	6KVA	8KVA	10KVA	15KVA
		3.5KW	4.2KW	5.6KW	7KW	10.5KW
Input	Voltage range Frequency Range AVR	110V-280VAC		160V-280VAC
		50Hz +/- 5Hz
		Four steps AVR 220v +/- 10%		Two steps AVR, 220 +/-10%
Output	Inversion frequency O/P waveform	220V +/- 3%
		50HZ +/- 2%
		Sine Wave
	Dc Voltage	48/7296V		96/192V		192V
	THD
	Transfer time
	Recharge current	15A-25A 10A
	Transfer efficiency	90-96%
	Protections	Protection against short-circuit, overload
	Communication port	RS 232
	Net weight (KG)	41	44.5	63	78.5	108.5
	Gross weight(KG)	42.5	47	68	82	112
	Unit size (mm)	450230410		555360720
	Shipping Size(mm)	530310510		720450865
	Quantity	1Pcs.			1pcs
