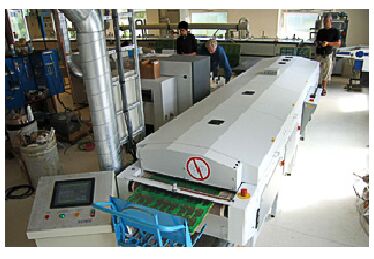

IR High speed curing Ovens for PISM

Especially for the final curing of photo imageable soldermask in the worldwide shortes curing time of about 4 minutes.

Two installations in production prove the quality of the polymerisation of the soldermask

The secret of the super fast final curing process is a unique 2-step-process.

The lead time could be reduced from 60-90 minutes to about 4 minutes, i.e.

Short lead time for a fast delivery

• low energy cost per board
• low requirement of production area
• fully automatic process
• newest PLC-control with touch screen operation
• no condensation residues in the heating chamber
• capacity increase possible at any time by adding heating modules
• scaled cost of equipment due to modular construction
