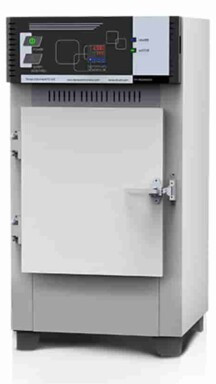

Electric Laboratory Drying Oven

Lab Drying Oven

“TEMPO” make lab drying TI ‐ 126 series ovens with forced air draft provided by means of blower fitted at the bottom of the oven. There is no re‐circulation of air.

Standard Models

• Inside SS 304 with mirror polish & outside mild steel powder coated.

GMP Models

• Inside SS 316 with mirror polish & outside stainless steel 304 with the dull buff finish.

Construction

• Ovens are made of double walled construction. The unit is insulated with 3” thick high grade glass wool insulation. The single door is fitted on heavy duty hinges. The unit is provided user friendly adjustable stainless steel rod trays.

Technical Specification

Controlling System

• Microprocessors based autotune PID temperature controller with a dual display of set value & process value for precise control of temperature with PT 100 sensor is used for temperature.

Air Circulation

• Forced air draft is provided by means of blower fitted at the bottom of the oven (there is no re‐circulation of air).

Heating System

• Heating element made from the best quality Kanthal wire are used on refractory supports.

Features

• Additional safety thermostat to cut off heater supply in case temperature of overshoot. The single door fitted on heavy hinges. Specially designed stainless steel rod trays to ensure uniform temperature distribution.

Optional Features

• CFR 21 part 11 compliance software for data logger
• Data logger
• Data scanner complete with sensor
• Safety digital temperature controller
• Timer
