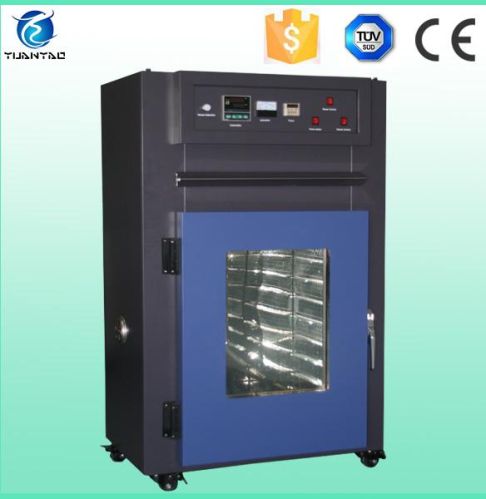

Laboratory Heating Drying Oven, Brand Name : Yuanyao

We are offering high temperature aging oven. Introduction of high temperature aging oven
this oven adopts computerized electronic digital control, precise & reliable.the packing of box insulation is moulded by silicone, hihg-temperature enduring & never aged attache with observation view window, easy to be used.heating is by compusory circulation ventilation, temperature raising is fast and spread even.pid control system, double sided overheating protection, safe & reliable. Easy to set temperature, easy to operate.attache dtwo sets of movable disd to be adjusted high and low at your disposal.
Main features of high temperature aging oven:
1. Adopt precise and reliable control way of computerized electronic digital controller.
2. The door sealing uses silicone, which endures high temperation. View window attached.
3. The centrigugal fan provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain uniform distribution of temperature.
technical specifications of high temperature aging oven:
model no:ypo-600
inner size:1000×1000×600
exterior size:1200×1700×840 room temp.+10°c~+200°c(300°c)
ferformance temp.&humi,constancy ±0.3°c
temp.&humi,constancy ±0.1°c at 200°c ±1.5%at300°c
indication resolution 0.1°c1°c
heat-up time( min.) approx.60min.
Material exterior iron sheet+baked enamel
interior sus#304 stainless steel piate
insulation fiberglass wool
systems cirulation circle fen
heating chrome steel strip wire heater
controller electric digital control+s.s.r.
Single-wing double-wing
environmental control indicator lights,
experiment separation shelves(2 pcs).
Overheating prevention circuit breaker,
control system,breakdown indicator light.
Power supply:ac 1ψ 220v 3ψ 380v 6050hz
