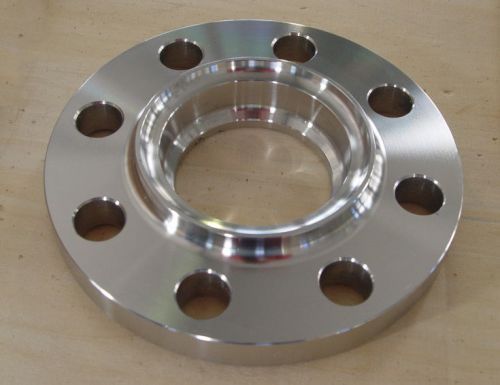

Polished Carbon Steel Lap Joint Flanges for Fittings Use

Get Latest Price

MOQ1 Ton
FinishingPolished
MaterialCarbon Steel,Stainless Steel, Alloy Steel, Inconel, Monel, Hastelloy, Alloy 20
UsageFittings Use,Most Commonly Used With Stub End Fittings, Applications Requiring Frequent Dismantling
Country of OriginIndia
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All Countries Except India

View More Details

Send Enquiry

Company Information

TRIDENT ALLOYS

Kumbharwada, Mumbai, Maharashtra

4.0/5

(1)

View Number

Member Since 11 Years
Nature of Business Manufacturer
GST No. 27BRGPM9284G1Z9

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

FinishingPolished
UsageFittings Use,Most Commonly Used With Stub End Fittings, Applications Requiring Frequent Dismantling
Country of OriginIndia
MaterialCarbon Steel,Stainless Steel, Alloy Steel, Inconel, Monel, Hastelloy, Alloy 20
Number Of FlowerLapped Joint Flanges
ClassesClass 150, Class 300, Class 600, Class 900, Class 1500, Class 2500
StandardsASME/ANSI B16.5, ANSI B16.47, DIN, JIS, UNI

Highly acclaimed Manufacturer & Supplier of Lap Joint Flanges, Carbon Steel Lap Joint Flanges, Stainless Steel Lap Joint Flanges, Alloy Steel Lap Joint Flanges, Inconel Lap Joint Flanges, Monel Lap Joint Flanges, Hastelloy Lap Joint Flanges, Alloy 20 Lap Joint in India
We are largest manufacturers of Lap Joint Flanges & have huge stock of 304 Lap Joint Flanges, 316 Lap Joint Flanges, astm a105 Lap Joint Flanges, astm a182 Lap Joint Flanges as per asme / ansi B16.5 Lap Joint flanges, ansi B16.47 Lap Joint flanges, Din Lap Joint flanges, jis Lap Joint flanges & uni Lap Joint flanges Standards.
We offer high quality Lap Joint Flanges in all size, classes & dimensions like Class 150 Lap Joint Flanges, Class 300 Lap Joint Flanges, Class 600 Lap Joint Flanges, Class 900 Lap Joint Flanges, Class 1500 Lap Joint Flanges & Class 2500 Lap Joint Flanges
We are largest Manufacturer, Supplier and Exporter of Lapped Joint Flanges, ASME 16.5 Lap Joint Flanges. Lap joint pipe flanges slide directly over the pipe and are most commonly used with stub end fittings. A pipe is usually welded to the Stub End and the Lap Joint pipe flange is free to rotate around the stub end. The benefit of this is that there will not be any issues with bolt hole alignment. Lap Joint pipe flanges are often used for applications that require frequent dismantling. A Lap joint Flange is very similar to a slip-on flange, with the main difference being that it has a curved radius at the bore and face to house a lap joint stub-end.Lap Joint Flanges are available in following specifications:

Details

Product Type	Lapped Joint Flanges, ASME 16.5 Lap Joint Flanges
Size	½” (15 NB) to 48″ (1200NB)
Class	150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Stainless Steel Lap Joint Flanges	ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Carbon Steel Lap Joint Flanges	ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70
Alloy Steel Lap Joint Flanges	ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Lap Joint Flanges	ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 2205 (UNS No. S31803), 2507 (UNS No. S32750)
Specialize	As per drawing
Standard	ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
Connection Type	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove.
Flanges Forms	Weld Neck Flanges – WNRF, Socket Weld Flanges – SWRF, Slip On Raise Face – SORF, Blind Raise Face- BLRF, Spectacle Blind, Ring Joint, Large Dia Flanges, Orifice Flanges, Girth Flange, Lap Joint Flanges, Screwed (Threaded) Flanges, Long Weld Neck Flanges, Reducing.
