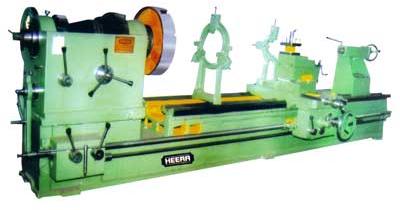

We are called upon as one of the famed Lathe Machine Exporters from India. We offer superb quality Lathe Milling Machine that is designed using cutting edge technology. Made from finest quality raw materials, Horizontal Lathe Machine is highly demanded by our customers. Known for their efficacious performance, durability as well as high precision, lathe machine is widely recommended by our clients. Lathe Milling Machine has found applications in large number of industries for respective industrial uses. In addition to this, we provide availability of Horizontal Lathe Machine in varying specifications as demanded by clients. Lathe milling machine can be availed at reasonable prices.
| mm | mm | mm | mm | mm | mm | |
|---|---|---|---|---|---|---|
| Length of Bed | 12' 3650 | 14' 4250 | 16' 4875 | 12' 3650 | 16' 4875 | 16' 4875 |
| Width of Bed | 24" 610 | 24" 610 | 26" 660 | 28" 710 | 28" 710 | 30" 760 |
| Total Width of Gap | 27" 685 | 27 " 685 | 30" 760 | 30" 760 | 30" 760 | 30" 760 |
| Width in front of Face plate | 23" 585 | 23" 585 | 26" 660 | 26" 660 | 26" 660 | 26" 660 |
| Swing in Gap Dia | 64" 1625 | 64" 1625 | 72" 1830 | 76" 1930 | 76" 1930 | 76" 1930 |
| Admit between centres | 73" 1855 | 73" 2465 | 118" 3000 | 70" 1780 | 118" 3000 | 118" 3000 |
| Height of Center over bed | 22" 550 | 22" 555 | 24" 610 | 26" 660 | 26" 660 | 28" 660 |
| Maximum swing over carriage dia | 32" 810 | 32" 810 | 37" 940 | 37" 940 | 37" 940 | 38" 965 |
| Spindle Hollow | 4-1/8" 105 to 5-5/8" 142 | 4-1/8" 105 to 5-5/8" 142 | 4-1/8" 105 to 5-5/8" 142 | 4-1/8" 105 to 5-5/8" 142 | 4-1/8" 105 to 5-5/8" 142 | 4-1/8" 105 to 5-5/8" 142 |
| M.T. Center | 5 | 5 | 5 | 5 | 5 | 5 |
| No. of Spindle Speeds | 6 | 6 | 6 | 6 | 6 | 6 |
| No. of Pedestals | 3 | 3 | 3 | 3 | 3 | 3 |
| Tailstock Quill Dia | 3-1/2" 90 | 3-1/2" 90 | 4" 100 | 4" 100 | 4" 100 | 4" 100 |
| Tailstock Quill Travel | 18" 450 | 18" 450 | 20" 500 | 20" 500 | 20" 500 | 20" 500 |
| Leadscrew Dia | 2-1/4" 56 | 2-1/4" 56 | 2-1/2" 63 | 2-1/2" 63 | 2-1/2" 63 | 2-1/2" 63 |
| Feed Shaft Dia | 1-3/8 36 | 1-3/8 36 | 1-3/8 36 | 1-3/8 36 | 1-3/8 36 | 1-3/8 36 |
| Headstock Gears (Helical Cut) | 4 D.P | 4 D.P | 4 D.P | 4 D.P | 4 D.P | 4 D.P |
| H.P. Recommended | 5 H.P. | 5 H.P. | 5 H.P. | 5 H.P. | 5 H.P. | 5 H.P. |
