Hardened & ground bed ways, four position tool post, Change gear set, Chuck plate Tool Post key, Centre adaptor, Motor pulley,Electric motor Dog chuck, true chuck Coolant pump, tank and nozzle Quuick change tool post/ rear tool post taper turning attachment Reverse- forward switch, vee belts Splash guard.
Salient Features •  Bed is made from 25 grade cast iron of 180 bhn hardened strictly
•  Boring of head stock is done on WMW boring machine fitted with induction hardended and ground spindle made from alloy steel.
•  Apron is totally enclosed oil bath system with lever type arrangment for automatic feeds.
•  Double screw norton gear box :- provided as time saver equipmentwith separate thread & feed shaft. thus, feed & thread gears could be
•  changed rapidly and decreases the wear and tear in half nut and lead screw.
•  Hexagonal shaped tail stock with hardened and ground tail stock spindle made from alloy steel having external and internal grinding
•  Oil dipped slid box
•  Oil dipped norton gear box with 8 speed spindle head
•  All pulley's are balanced on balancing machine
•  Double bearing in the front of head stock (total 3-bearrings in the head)
Â

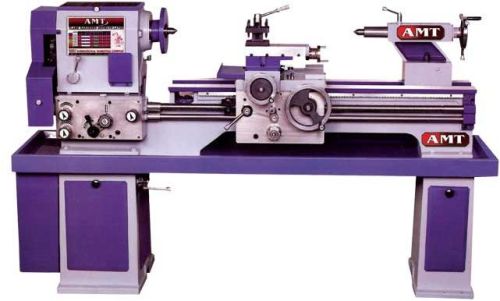

| Technical data and specifications for medium and heavy duty lathe (Geared V-Belt Driven) | |||
| Specification | Medium duty (Under-counter) | ||
| Bed Length | 4-1/2 feet | 6 feet | |
| Bed type | 2 V 2 flat | 2 V 2 flat | |
| Bed width | 275(11") | 275(11") | |
| Height of centre | 9" | 9" | |
| Swing over bed | 350mm | 350mm | |
| Swing over cross slide | 200mm | 200mm | |
| Admit between centre | 487mm | 940mm | |
| No.of spindle speed/8 | 8 | 8 | |
| RPM(low/high) | 45-750 | 45-750 | |
| Motor Power | 2hp | 2hp | |
| Wight(approx) | 700kg | 800kg | |
