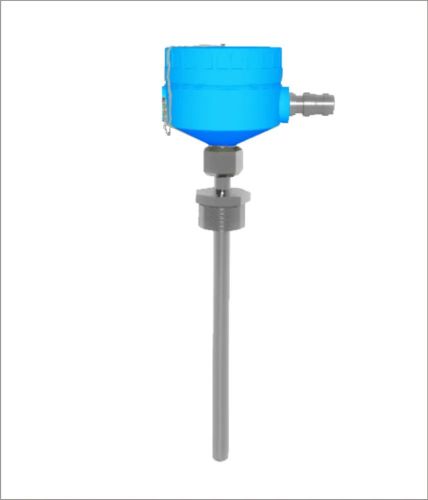

LCT-01 Capacitance Level TransmitterFeatures
Two-wire system
4–20 mA DC output
Weatherproof IP67 electronics protection
Reliable measurement of conductive and non-conductive liquids, slurries
Fast, stable and maintenance-free operation
Description
Electronet LCT-01 Series are capacitance-type level transmitters used for continuous level measurement in tanks and vessels. The probe and vessel wall form the two electrodes of a capacitor. For non-conductive vessels, a double-rod probe design is used.
As the level of material changes, the dielectric constant between the probe and vessel wall changes. Air has a dielectric constant of 1, while liquids have values greater than 1. This variation in dielectric constant changes the capacitance value, which is converted into a proportional 4–20 mA output representing the level.
The transmitter offers a stable, accurate and drift-free measurement, suitable for liquids, powders and slurries.
Technical SpecificationsProbe & Measurement
Probe Length:
• Up to 15 meters
• Single Rod (up to 2000 mm)
• Coaxial Probe (up to 2000 mm)
• Rope Type Probe (above 2000 mm)
Measuring Range: Level measurement as per probe length
Accuracy: ±1% F.S.
Linearity: ±1%
Response Time:
