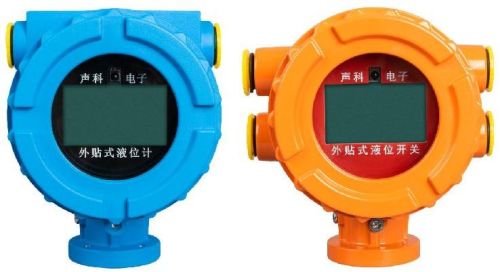

Liquid Level Probes

₹ 89,000 / Set

MOQ1 Set(s)
accuracy0.1%
External level GaugeTwo-wire type
Signal output(4~20 )mA, HART,MAX 500Ω
Tank bottom thicknessWithin 20mm
Measuring range0~30m
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shaanxi Shengke Electronic Technology Co.,Ltd

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

accuracy0.1%
Measuring range0~30m
Signal output(4~20 )mA, HART,MAX 500Ω
Tank bottom thicknessWithin 20mm
External level GaugeTwo-wire type

1.Advantage External level measurement with safety Global First Two-Wire System Easily installation, Trial run and Maintenance Auto-diagnosed and collation Video display and remote on the spot The Sonar Technology 2.Work Principle External liquid lever indicator with sonar ranging principle, using the special probe gets the sonar signal; the probe has been pasted in the outer wall of the tank. Main system is special sonar wave processing technology, using the SK Method to calculate the level value and output of remote signal. Instrument can through the (4-20)mA analog signal, HART, RS-485, Ethernet, transfers the measurements to the control center, meanwhile can through the wi-fi,Bluetooth,HART,RS-485, infrared, Ethernet debug the controller online. Like the picture, Measure the liquid level, the sonar wave signal from the probe to launch out, after liquid level reflected, the probe detects echo signal. Echo signal by proprietary algorithm to calculate the time (t), system can calculate the liquid level value according to the formula.
