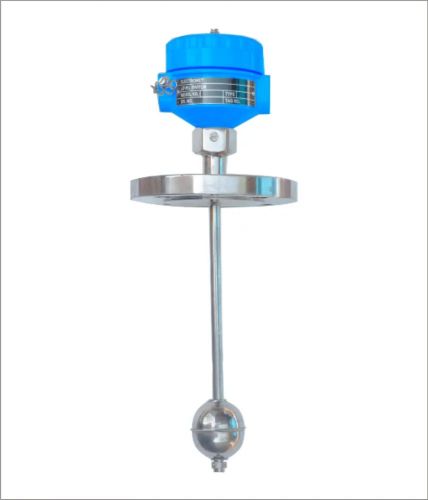

LMT 01 Magnetic Float Level Transmitter

LMT-01 Magnetic Float Level TransmitterFeatures

Simple, low-cost, and reliable
Suitable for conductive and non-conductive liquids and slurries
Continuous 4–20 mA DC output
2-wire loop-powered system
Weatherproof IP67 protection
Flameproof CMRI IIA IIB certified (optional)
Maintenance-free operation

Description

Electronet LMT-01 series are magnetic float-operated level transmitters designed for continuous level measurement.
The system consists of a non-magnetic guide tube and a float containing a magnetic assembly. As the liquid level changes, the float moves along the guide tube and actuates hermetically sealed reed switches inside.
This sequential actuation creates a proportional 4–20 mA DC signal, enabling smooth and accurate level indication.
The robust construction and reliable sensing mechanism make the LMT-01 suitable for a wide range of industrial level-measurement applications.

Technical SpecificationsMeasurement

Probe Length: As required (max. 2 meters)
Probe Type: Single Rod (up to 2000 mm)
Accuracy: ±10 mm
Linearity: ±0.5% for 3 m probe length

Process Conditions

Process Temperature: up to 55°C
Process Pressure: up to 10 kg/cm²
Mounting: Top of the tank

Material of Construction

Probe / Transducer MOC:
• SS316
• PTFE
• Hastelloy C
• PP

Float MOC: SS or PP (factory selected based on fluid)
Float Dimensions: Dia 54 mm × Height 106 mm

Electrical

Output: 4–20 mA DC (2-wire)
Power Supply: 24 VDC (±10%), loop powered
Response Time:
