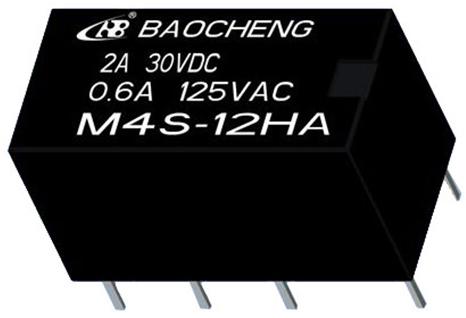

relay type:Â m4s relay
baocheng export excellent power relay, telecom relays and automotive relays.
Â
· bifurcated contacts form
· high switching capacity: 125vac/60w
· dip structure, matching 16 pin ic socket
· epoxy sealed for automatic-wave soldering and cleaning
· environmental friendly product
· outline dimension: 20.2 x 10 x 11.5mm
contact ratings | |
contact form: | 2c |
contact material: | agni (gold clad) |
contact load capacity: | 0.6a,1a/125vac, 2a/30vdc |
max. switching current: | 2a |
max. switching power: | 125va/60w |
mechanical endurance: | 1*107ops |
electrical endurance: | 1*105ops |
telecom relays, telecom relays 19f, telecom relays exporter, china
technical ratings | |
insulation resistance: | 1000mω |
dielectric strength(between coil&contact): | 1000vac |
operate time (max.): | 7ms |
release time (max.): | 4ms |
ambient temperature: | -30℃ ~ 70℃ |
terminal type: | dip |
