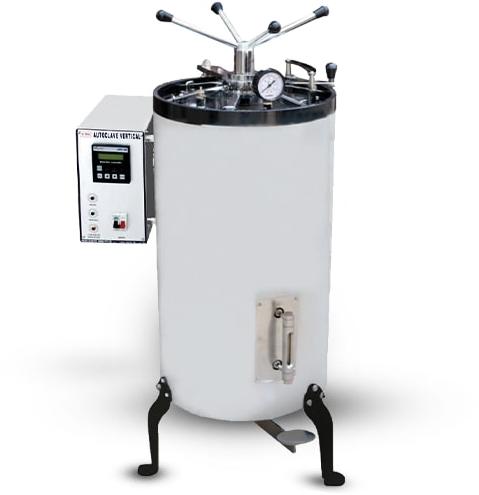

MSW-101 Eco-Semi Automatic Digital Vertical Autoclave

Company Information

Somwar Peth, Pune, Maharashtra

4.5/5

(17)

Ask for more detail from the seller

Report incorrect details

Features:

MAC Semi-Automatic Digital Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
These are semi-automatic models requiring tighter control of temperature and sterilizing time, thus eliminating any chances of under or overexposure of media/ samples with respect to temperature and hold time.
Inner made of Stainless Steel and outer made of Mild Steel duly painted.
Supporting Ring & Legs are made up of mild steel.
Heaters cover stand and carrier/bucket are made of Stainless Steel.
Lid is made of thick machined Mild Steel plate lined with stainless steel from inside
Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, Manual Exhaust Valve, and water level indicator.
Drain Valve facilitates easy cleaning of the chamber.
Fitted with neoprene rubber gasket.
All internal joints are argon arc welded.
µProcessor based Controller with time and temperature settable by the user.
Operating range from 15 to 22 psi pressure. (adjustable)
Class ‘A’ Platinum (Pt-100) sensor, enabling precise and accurate monitoring in 0.1OC resolution and + 1OC accuracy.
End of cycle buzzer to alert the user.
Miniature Circuit Breaker for MAINS On/Off plus the safety of control panel.
Industrial grade energy efficient heaters reduce power bills drastically.
Fitted with low water cut-off for the general safety of heating elements.
To work on 220/230Volts, 50/60 Hz AC supply.

Options:

Technical Specifications & Ordering Informations

Model	#AV-22 (ECO-SAD)	#AV-40 (ECO-SAD)	#AV-50 (ECO-SAD)	#AV-78 (ECO-SAD)	#AV-98 (ECO-SAD)	#AV-187 (ECO-SAD)
Inner Dimensions (Dia x Height)	250×450mm	300×500mm	350×550mm	400×600mm	450×600mm	550×750mm
Dimensions of Basket (Dia x Height)	225×300mm	275×350mm	325×400mm	375×450mm	425×450mm	525×600mm
Capacity	22 Ltrs	40 Ltrs	50 Ltrs	78 Ltrs	98 Ltrs	187 Ltrs
Heater Load	2.0 KW	3.0 KW	3.0 KW	4.0 KW	4.0 KW	2.0 + 3.0 KW
Gasket	Made of Jointless neoprene Rubber
Controller	Semi automatic Digital temperature Indicator-cum-Controller
Display	Digital LED with Set Value (SV) and Process Value (PV)
Timer (Auto Time Control)	Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically
