Scope of Electrical Works:-

• Supplying & installing of new CNC System SIEMENS 828 D MULTI CHANEL   Package (4 Axes + 1 Spindle).
• A.C Servo motors of 36 NM, Vertical axis Ram having brake motors.
• Digital AC Drives for 36 nm motors.
• 10.4” color LCD.
• Manual pulse generator.
• PP Module -04 nos.
• SMC 20-04 Nos.
• All cables & connectors.
• Machine control panel-01 no.
• All required accessories.
• All manuals-01 set soft & hard copy.
• All required cables LAPP/FINOLEX/POLYCAB.
• Cable conduits as required.
• Power supply 24 v dc.
• Relay board PCB Terminal strip converters.
• Control transformer.
• Isolation transformer 150 KVA.
• Limit switches with limiting carriers.
• Supplying & installing of a new Electrical Control Panel (Rittal Make) with air conditioner for Panel Cooling.
• Supplying & installing of new Control Panel with all required switch gear items.
• Interfacing of the new AC Servo motors for all axes of required rating / capacity and the same will be connected to the new CNC Control. Required brackets will be made and fixed by us.
• The existing spindle DC motor & Drive with PLC will be retained and this will be properly interfaced to the new CNC controller.
• Machine wiring with cable conduits, cable carriers, cable ducts, limit switches for all axes.
• MPEG arrangement will be supplied for operator convenience.
• Supplying & installing of new Pedestal Type Operator Panel near the machine.
• Commissioning the new CNC System with PLC Ladder Logic Development with all interlockers & interfacing the same with the machine.
• Dry Run of the machine.
• Machine Trials.

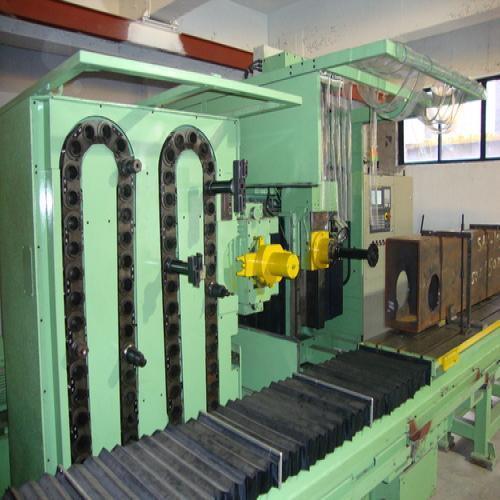

We are a renowned company engaged in offering efficient Machine Retrofitting Services in India to our esteemed clientele. Our clients accomplished for our wide range of expert machine retrofitting services. We take old machines to retrofit for updated new machines by inducing with new technologies at lower cost by offering perfect Retrofit Machine Services to our valued clients. These services are specially offered to strengthen and rehabilitate the weak structure, which further ensure maximum durability and high tensile strength of the structure of the machines. A team of experienced and well-qualified professionals renders these services in strict adherence to industry specified quality standards. Our offered machine-retrofitting services are rendered within the client’s specified time and budget constraints and are acclaimed for their compliance with industrial quality norms. We are offering machine-retrofitting services at best prices available in the market.
