Machine Vision Camera

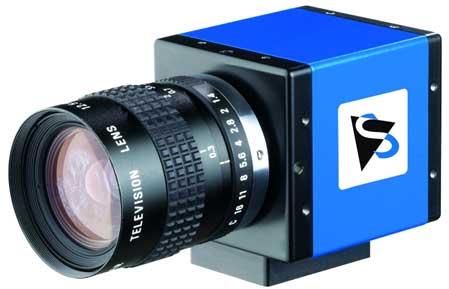

We are offering machine vision camera. The dmk 21bg04.h industrial camera is having ethernet connectivity. The machine vision camera is also having 12 pin heroes connector which includes power supply, external trigger signal, strobe out signal and other general purpose input and output signal. Other industrial cameras also there which are also used in vision inspection system. Other models of machine vision camera are having fire-wire and usb connectivity. Color and monochrome cameras are also there with high resolution ccd and cmos. Generally for high speed application this type of camera is used. applications

• the cameras generally used for online and offline vision inspection.
• these cameras are used in machine vision system as well as in microscope.
• technical specifications there are wide range of different cameras available, we can choose particular model according to application. Here we have mentioned the specification of the ethernet camera.
  • video format @ frame rate : 640x480 y800 @ 60, 30, 15, 7.5, 3.75
  • format : ¼”
  • pixel size : h: 5.6 µm, v: 5.6 µm
  • lens mount : ccs
  • supply voltage : 12 to 24 vdc
  • current consumption : approx 500 ma at 12 vdc
  • dimensions : h: 50.6 mm, w: 50.6 mm, l: 50 mm
  • mass : 265 g
  • shutter : 110000 to 30 s
  • gain : 0 to 36 db
  • offset : 0 to 511
  • max. Temperature (operation) : -5oc to 45oc
  • outputs : strobe out (open drain), general purpose op (open drain)
  • inputs : external trigger (ttl), general purpose ip (ttl)
  • industries where this product is used
    • machine vision industry
    • microscopy purpose
    • industrial automation
    • pc based automation
    • features
      • it is used for 100% quality assurance at very high speed.
      • the gige camera is throughout consistent during the work.
      • high speed vision inspection system
      • high frequency measurement
      • very law maintenance cost and handling charge.
