Magnetic Separators 01

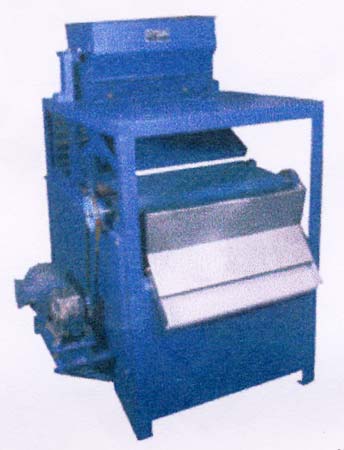

High Intensity Roller Type Magnetic Seperator
We have specially developed High Intensity, High gradient, Permanent Magnetic Roller Separators with the Indigenously Developed Technology. Which has been used successfully in various Industries Specially Minerals. The Machine incorporates high energy Rare Earth Neodymium Permanent Magnetic RollAssembly, which is manufactured and assembled under strict quality control ana specification. Under High Intensity Magnetic Field, Magnetic Contamination can be easily removed effidently.
Operating Principle:
A short conveyor belt envelopes the Magnetic Rolland a tensioning Ideal Roll. A Suitable Feeder discharges material on the Belt. The Ferrous Material adhere to the Belt while the non Ferrous Material flow freely off the end of the conveyor.
Features:
Magnetic Rolls are available in various diameters &widths, they are normally designed as per requirement to suit every customer's need. In three different Magnetic Strengths 8,000 Gauss, 20,000 Gauss and 22,000 Gauss. A 0.5 HP, variable speed DC/ACGeared
Motor drive adjustable from 0 to 100 RPMDrives the Roll. Vibratory Feeder with Controls provided for Feeding. Abrasion resistant
endless conveyor Belts with thickness of 0.8mm is provided for the Machine.
Applications:
Our machines are most useful in various types of industrial Minerals applications, such as Abrasive, Refractory and Ceramic, Alumina, Silica, Carbide, Magnesite, Quartzite, etc. Glass Raw Materials Cleaning Silica sand, Quartz, Feldspar, Dolomite, etc. Ultra High Purity Quartz Cleaning. Graphite Upgrading, Mangense ore benification, Bauxite Upgrading, Diamond ore benification, Selective Separation of
Garnet I Ilmenite I Rutile, Zircon, Benification of Iron ore, recovery of Metals from Slag, Removal of Ferro Silicates from Limestone, Magnesite, etc.
